| Part Number | ADCMP563BCPZ-RL7 | ADCMP573BCPZ-RL7 | ADCMP563BCP-RL7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Type | with Latch | with Latch | with Latch |
| Number of Elements | 2 | 1 | 2 |
| Output Type | Complementary, Differential, ECL, Open-Emitter | Complementary, PECL | Complementary |
| Voltage - Supply, Single/Dual (±) | ±4.75V ~ 5.25V | 3.1V ~ 5.4V | 4.75V ~ 5.25V, ±2.375V ~ 2.625V |
| Voltage - Input Offset (Max) | 10mV @ 5V | 2mV @ 3.3V | 10mV @ 5V |
| Current - Input Bias (Max) | 10µA @ 5V | 25µA @ 3.3V | 10µA @ 5V |
| Current - Output (Typ) | - | 35mA | 30mA |
| Current - Quiescent (Max) | 5mA | 80mA | 5mA, 25mA |
| CMRR, PSRR (Typ) | 80dB CMRR, 85dB PSRR | 65dB CMRR, 74dB PSRR | 80dB CMRR, 85dB PSRR |
| Propagation Delay (Max) | - | 0.165ns | 0.83ns |
| Hysteresis | ±1mV | ±1mV | ±1mV |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

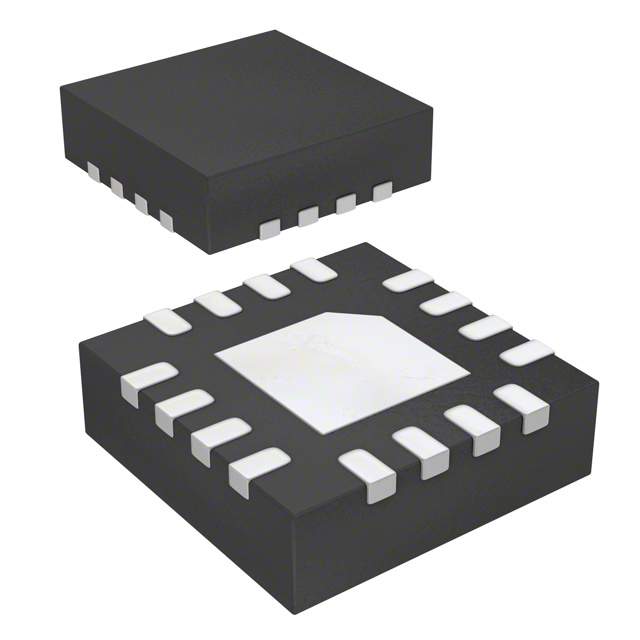

| Package / Case | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 16-LFCSP (3x3) | 16-LFCSP (3x3) | 16-LFCSP-WQ (3x3) |
