| Part Number | ADA4691-2ACBZ-R7 | ADA4691-2ACPZ-R7 | ADA4691-2ACBZ-RL |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 2 | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 1.3V/µs | 1.3V/µs | 1.3V/µs |
| Gain Bandwidth Product | 3.6 MHz | 3.6 MHz | 3.6 MHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 0.5 pA | 0.5 pA | 0.5 pA |
| Voltage - Input Offset | 500 µV | 500 µV | 500 µV |
| Current - Supply | 180µA (x2 Channels) | 180µA (x2 Channels) | 180µA (x2 Channels) |
| Current - Output / Channel | 55 mA | 55 mA | 55 mA |
| Voltage - Supply Span (Min) | 2.7 V | 2.7 V | 2.7 V |
| Voltage - Supply Span (Max) | 5 V | 5 V | 5 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

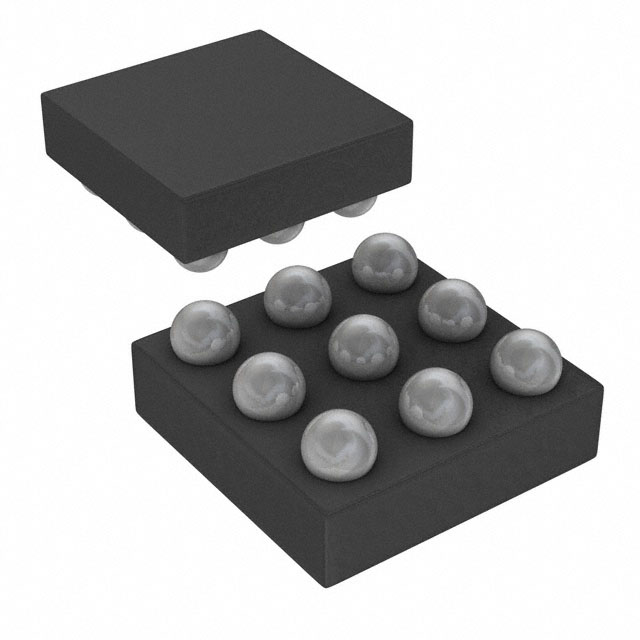

| Package / Case | 9-UFBGA, WLCSP | 10-UFQFN, CSP | 9-UFBGA, WLCSP |
| Supplier Device Package | 9-WLCSP (1.21x1.22) | 10-LFCSP-UQ (2x2) | 9-WLCSP (1.21x1.22) |
