| Part Number | ADA4505-1ACBZ-R7 | ADA4505-4ACBZ-R7 | ADA4505-2ACBZ-R7 | ADA4505-1ACBZ-RL |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Amplifier Type | Voltage Feedback | CMOS | CMOS | Voltage Feedback |
| Number of Circuits | 1 | 4 | 2 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 0.006V/µs | 0.006V/µs | 0.006V/µs | 0.006V/µs |
| Gain Bandwidth Product | 50 kHz | 50 kHz | 50 kHz | 50 kHz |
| -3db Bandwidth | - | - | - | - |
| Current - Input Bias | 500 nA | 0.5 pA | 0.5 pA | 500 nA |
| Voltage - Input Offset | 500 µV | 500 µV | 500 µV | 500 µV |
| Current - Supply | 9µA | 7µA (x4 Channels) | 7µA (x2 Channels) | 9µA |
| Current - Output / Channel | 40 mA | 40 mA | 40 mA | 40 mA |
| Voltage - Supply Span (Min) | 1.8 V | 1.8 V | 1.8 V | 1.8 V |
| Voltage - Supply Span (Max) | 5 V | 5 V | 5 V | 5 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

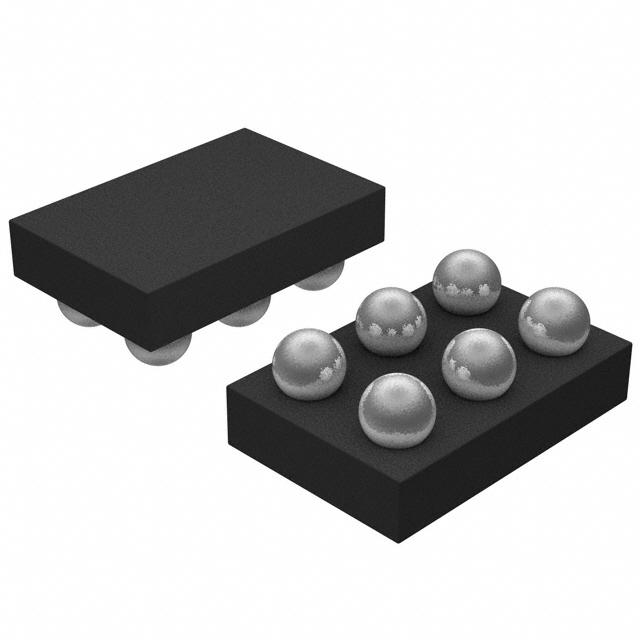

| Package / Case | 6-UFBGA, WLCSP | 14-UFBGA, WLCSP | 8-UFBGA, WLCSP | 6-UFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP (0.91x1.39) | 14-WLCSP (1.46x2.96) | 8-WLCSP (1.42x1.42) | 6-WLCSP (0.91x1.39) |
