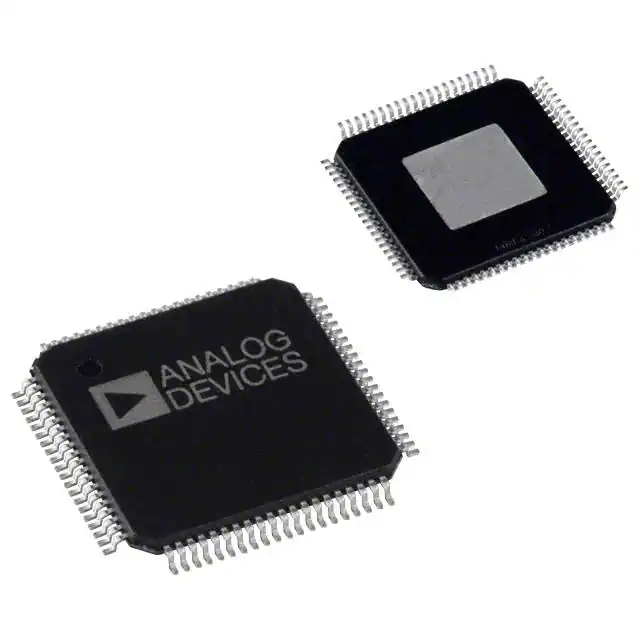

| Part Number | AD9786BSVZRL | AD9787BSVZRL | AD9788BSVZRL | AD9785BSVZRL | AD9786BSVRL |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Obsolete |
| Number of Bits | 16 | 14 | 16 | 12 | - |
| Number of D/A Converters | 1 | 2 | 2 | 2 | - |
| Settling Time | - | 20ns (Typ) | 20ns (Typ) | 20ns (Typ) | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - |
| Differential Output | Yes | Yes | Yes | Yes | - |
| Data Interface | Parallel | Parallel | Parallel | Parallel | - |
| Reference Type | External, Internal | Internal | Internal | Internal | - |
| Voltage - Supply, Analog | 3.1V ~ 3.5V | 3.13V ~ 3.47V | 3.13V ~ 3.47V | 3.13V ~ 3.47V | - |
| Voltage - Supply, Digital | 2.35V ~ 2.65V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | - |
| INL/DNL (LSB) | ±0.6, ±0.3 | ±1, ±0.5 | ±3.7, ±2.1 | ±0.3, ±0.2 | - |
| Architecture | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Oversampling Interpolating DAC | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Package / Case | 80-TQFP Exposed Pad | 100-TQFP Exposed Pad | 100-TQFP Exposed Pad | 100-TQFP Exposed Pad | 80-TQFP Exposed Pad |
| Supplier Device Package | 80-TQFP-EP (12x12) | 100-TQFP-EP (14x14) | 100-TQFP-EP (14x14) | 100-TQFP-EP (14x14) | 80-TQFP-EP (12x12) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
