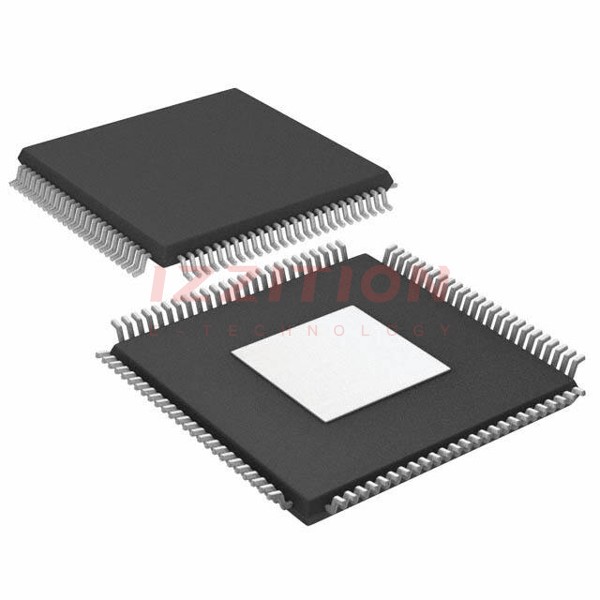

Analog Devices Inc. AD9785BSVZ

Manufacturer No:
AD9785BSVZ
Manufacturer:
Analog Devices Inc.
Package:
Tray
Datasheet:
AD9785BSVZ Datasheet
ECAD Model:
-
Description:
IC DAC 12BIT A-OUT 100TQFP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:2
Settling Time:20ns (Typ)
Output Type:Current - Unbuffered
Differential Output:Yes
Data Interface:Parallel
Reference Type:Internal
Voltage - Supply, Analog:3.13V ~ 3.47V
Voltage - Supply, Digital:1.7V ~ 1.9V, 3.13V ~ 3.47V
INL/DNL (LSB):±0.3, ±0.2
Architecture:Oversampling Interpolating DAC
Operating Temperature:-40°C ~ 85°C
Package / Case:100-TQFP Exposed Pad
Supplier Device Package:100-TQFP-EP (14x14)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$49.96
8

Please send RFQ , we will respond immediately.

Similar Products

Part Number AD9785BSVZ AD9787BSVZ   AD9788BSVZ   AD9786BSVZ   AD9775BSVZ
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active Active
Number of Bits 12 14 16 16 14
Number of D/A Converters 2 2 2 1 2
Settling Time 20ns (Typ) 20ns (Typ) 20ns (Typ) - 11ns (Typ)
Output Type Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered
Differential Output Yes Yes Yes Yes Yes
Data Interface Parallel Parallel Parallel Parallel Parallel
Reference Type Internal Internal Internal External, Internal External, Internal
Voltage - Supply, Analog 3.13V ~ 3.47V 3.13V ~ 3.47V 3.13V ~ 3.47V 3.1V ~ 3.5V 3.1V ~ 3.5V
Voltage - Supply, Digital 1.7V ~ 1.9V, 3.13V ~ 3.47V 1.7V ~ 1.9V, 3.13V ~ 3.47V 1.7V ~ 1.9V, 3.13V ~ 3.47V 2.35V ~ 2.65V 3.1V ~ 3.5V
INL/DNL (LSB) ±0.3, ±0.2 ±1, ±0.5 ±3.7, ±2.1 ±0.6, ±0.3 ±1.5, ±1
Architecture Oversampling Interpolating DAC Oversampling Interpolating DAC Oversampling Interpolating DAC Oversampling Interpolating DAC Oversampling Interpolating DAC
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Package / Case 100-TQFP Exposed Pad 100-TQFP Exposed Pad 100-TQFP Exposed Pad 80-TQFP Exposed Pad 80-TQFP Exposed Pad
Supplier Device Package 100-TQFP-EP (14x14) 100-TQFP-EP (14x14) 100-TQFP-EP (14x14) 80-TQFP-EP (12x12) 80-TQFP-EP (12x12)
