| Part Number | AD9778ABSVZ | AD9779ABSVZ | AD9778BSVZ | AD9776ABSVZ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 14 | 16 | 14 | 12 |
| Number of D/A Converters | 2 | 2 | 2 | 2 |
| Settling Time | - | - | - | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V | 3.13V ~ 3.47V | 3.13V ~ 3.47V | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.7V ~ 2.05V, 3.13V ~ 3.47V | 1.7V ~ 2.05V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 2.05V, 3.13V ~ 3.47V |
| INL/DNL (LSB) | ±1.5, ±0.65 | ±6, ±2.1 | ±1, ±0.65 | ±0.86, ±0.1 |
| Architecture | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Oversampling Interpolating DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

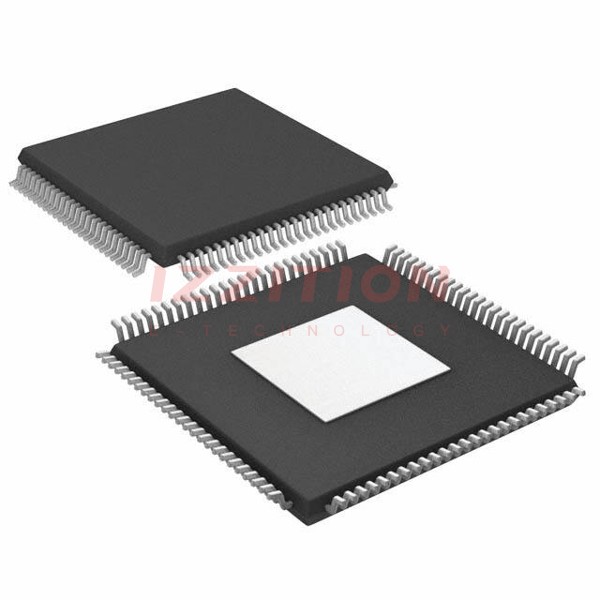

| Package / Case | 100-TQFP Exposed Pad | 100-TQFP Exposed Pad | 100-TQFP Exposed Pad | 100-TQFP Exposed Pad |
| Supplier Device Package | 100-TQFP-EP (14x14) | 100-TQFP-EP (14x14) | 100-TQFP-EP (14x14) | 100-TQFP-EP (14x14) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
