Please send RFQ , we will respond immediately.

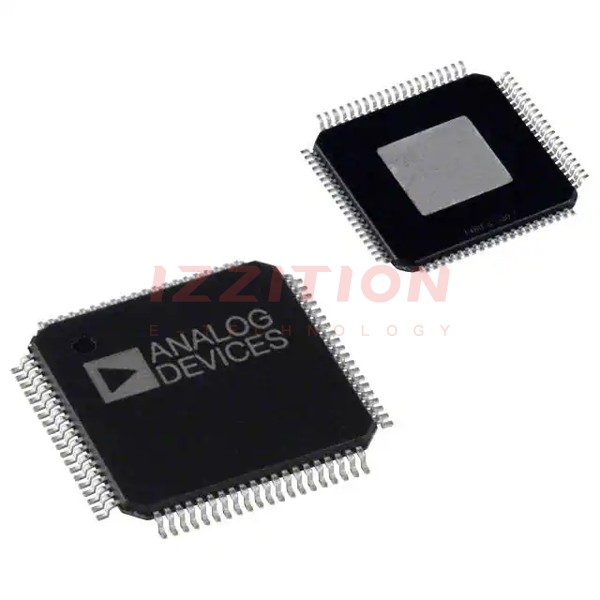

| Part Number | AD9777BSVZ | AD9787BSVZ | AD9779BSVZ | AD9778BSVZ | AD9773BSVZ | AD9775BSVZ | AD9776BSVZ | AD9777BSV |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete |
| Number of Bits | 16 | 14 | 16 | 14 | 12 | 14 | 12 | - |
| Number of D/A Converters | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - |
| Settling Time | 11µs (Typ) | 20ns (Typ) | - | - | 11ns (Typ) | 11ns (Typ) | - | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - |
| Differential Output | Yes | Yes | Yes | Yes | Yes | Yes | Yes | - |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | - |
| Reference Type | External, Internal | Internal | Internal | Internal | External, Internal | External, Internal | Internal | - |
| Voltage - Supply, Analog | 3.1V ~ 3.5V | 3.13V ~ 3.47V | 3.13V ~ 3.47V | 3.13V ~ 3.47V | 3.1V ~ 3.5V | 3.1V ~ 3.5V | 3.13V ~ 3.47V | - |
| Voltage - Supply, Digital | 3.1V ~ 3.5V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 3.1V ~ 3.5V | 3.1V ~ 3.5V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | - |
| INL/DNL (LSB) | ±6, ±3 | ±1, ±0.5 | ±3.7, ±2.1 | ±1, ±0.65 | ±0.4, ±0.2 | ±1.5, ±1 | ±0.6, ±0.1 | - |
| Architecture | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Current Source | Oversampling Interpolating DAC | Oversampling Interpolating DAC | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Package / Case | 80-TQFP Exposed Pad | 100-TQFP Exposed Pad | 100-TQFP Exposed Pad | 100-TQFP Exposed Pad | 80-TQFP Exposed Pad | 80-TQFP Exposed Pad | 100-TQFP Exposed Pad | 80-TQFP Exposed Pad |
| Supplier Device Package | 80-TQFP-EP (12x12) | 100-TQFP-EP (14x14) | 100-TQFP-EP (14x14) | 100-TQFP-EP (14x14) | 80-TQFP-EP (12x12) | 80-TQFP-EP (12x12) | 100-TQFP-EP (14x14) | 80-TQFP-EP (12x12) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
