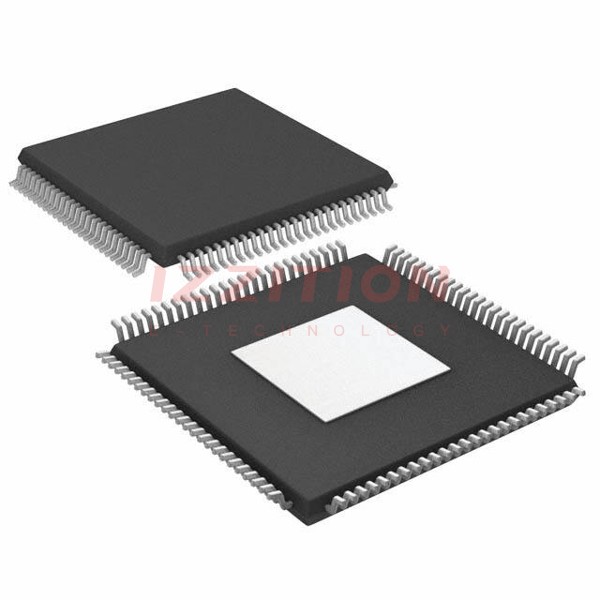

| Part Number | AD9776BSVZ | AD9777BSVZ | AD9779BSVZ | AD9786BSVZ | AD9778BSVZ | AD9773BSVZ | AD9775BSVZ | AD9776ABSVZ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active |
| Number of Bits | 12 | 16 | 16 | 16 | 14 | 12 | 14 | 12 |
| Number of D/A Converters | 2 | 2 | 2 | 1 | 2 | 2 | 2 | 2 |
| Settling Time | - | 11µs (Typ) | - | - | - | 11ns (Typ) | 11ns (Typ) | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | Internal | External, Internal | Internal | External, Internal | Internal | External, Internal | External, Internal | Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V | 3.1V ~ 3.5V | 3.13V ~ 3.47V | 3.1V ~ 3.5V | 3.13V ~ 3.47V | 3.1V ~ 3.5V | 3.1V ~ 3.5V | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 3.1V ~ 3.5V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 2.35V ~ 2.65V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 3.1V ~ 3.5V | 3.1V ~ 3.5V | 1.7V ~ 2.05V, 3.13V ~ 3.47V |
| INL/DNL (LSB) | ±0.6, ±0.1 | ±6, ±3 | ±3.7, ±2.1 | ±0.6, ±0.3 | ±1, ±0.65 | ±0.4, ±0.2 | ±1.5, ±1 | ±0.86, ±0.1 |
| Architecture | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Current Source | Oversampling Interpolating DAC | Oversampling Interpolating DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 100-TQFP Exposed Pad | 80-TQFP Exposed Pad | 100-TQFP Exposed Pad | 80-TQFP Exposed Pad | 100-TQFP Exposed Pad | 80-TQFP Exposed Pad | 80-TQFP Exposed Pad | 100-TQFP Exposed Pad |
| Supplier Device Package | 100-TQFP-EP (14x14) | 80-TQFP-EP (12x12) | 100-TQFP-EP (14x14) | 80-TQFP-EP (12x12) | 100-TQFP-EP (14x14) | 80-TQFP-EP (12x12) | 80-TQFP-EP (12x12) | 100-TQFP-EP (14x14) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
