| Part Number | AD9739BBC | AD9739BBCZ | AD9734BBC | AD9735BBC | AD9736BBC |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Obsolete | Active |
| Number of Bits | 14 | 14 | - | - | 14 |
| Number of D/A Converters | 1 | 1 | - | - | 1 |
| Settling Time | 13ns (Typ) | 13ns (Typ) | - | - | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | - | - | Current - Unbuffered |
| Differential Output | Yes | Yes | - | - | Yes |
| Data Interface | LVDS - Parallel | LVDS - Parallel | - | - | LVDS - Parallel |
| Reference Type | External, Internal | External, Internal | - | - | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V, 3.1V ~ 3.5V | 1.7V ~ 1.9V, 3.1V ~ 3.5V | - | - | 1.7V ~ 1.9V, 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V, 3.1V ~ 3.5V | 1.7V ~ 1.9V, 3.1V ~ 3.5V | - | - | 1.7V ~ 1.9V, 3.13V ~ 3.47V |
| INL/DNL (LSB) | ±1.3, ±0.8 | ±1.3, ±0.8 | - | - | ±1, ±0.6 |
| Architecture | Quad-Switch | Quad-Switch | - | - | Oversampling Interpolating DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | - | - | -40°C ~ 85°C |

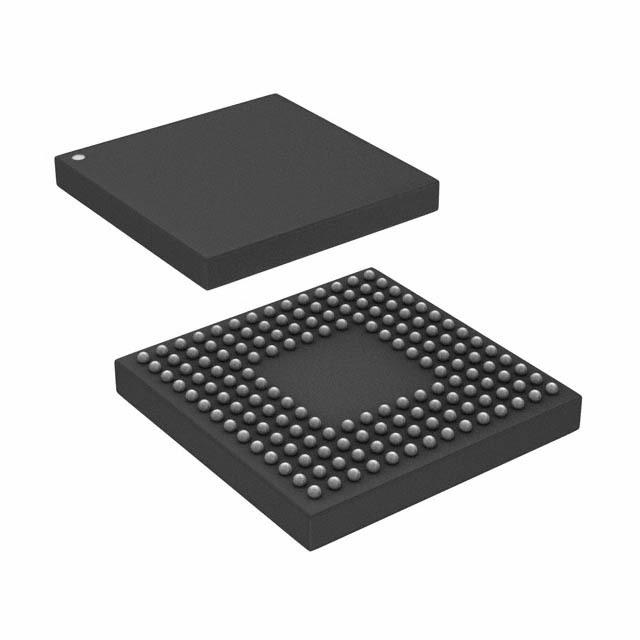

| Package / Case | 160-LFBGA, CSPBGA | 160-LFBGA, CSPBGA | 160-LFBGA, CSPBGA | 160-LFBGA, CSPBGA | 160-LFBGA, CSPBGA |
| Supplier Device Package | 160-CSPBGA (12x12) | 160-CSPBGA (12x12) | 160-CSPBGA (12x12) | 160-CSPBGA (12x12) | 160-CSPBGA (12x12) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
