| Part Number | AD9734BBCZ | AD9736BBCZ | AD9739BBCZ | AD9735BBCZ | AD9734BBC |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active | Active | Obsolete |
| Number of Bits | 10 | 14 | 14 | 12 | - |
| Number of D/A Converters | 1 | 1 | 1 | 1 | - |
| Settling Time | - | - | 13ns (Typ) | - | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - |
| Differential Output | Yes | Yes | Yes | Yes | - |
| Data Interface | LVDS - Parallel | LVDS - Parallel | LVDS - Parallel | LVDS - Parallel | - |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | - |
| Voltage - Supply, Analog | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.1V ~ 3.5V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | - |
| Voltage - Supply, Digital | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.1V ~ 3.5V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | - |
| INL/DNL (LSB) | ±0.12, ±0.06 | ±1, ±0.6 | ±1.3, ±0.8 | ±0.50, ±0.25 | - |
| Architecture | Oversampling Interpolating DAC | Oversampling Interpolating DAC | Quad-Switch | Oversampling Interpolating DAC | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |

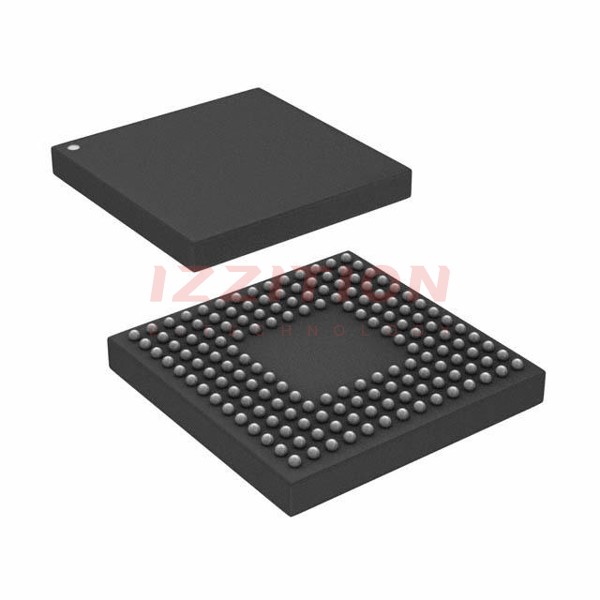

| Package / Case | 160-LFBGA, CSPBGA | 160-LFBGA, CSPBGA | 160-LFBGA, CSPBGA | 160-LFBGA, CSPBGA | 160-LFBGA, CSPBGA |
| Supplier Device Package | 160-CSPBGA (12x12) | 160-CSPBGA (12x12) | 160-CSPBGA (12x12) | 160-CSPBGA (12x12) | 160-CSPBGA (12x12) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
