| Part Number | AD9164BBCZ | AD9161BBCZ | AD9162BBCZ | AD9163BBCZ | AD9164BBCA | AD9164BBCAZ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Bits | 16 | 11 | 16 | 16 | 16 | 16 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 1 | 1 |
| Settling Time | - | - | - | - | - | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No | No | No | No |
| Data Interface | JESD204B | JESD204B | JESD204B | JESD204B | JESD204B | JESD204B |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.14V ~ 1.326V, 2.375V ~ 2.625V | 1.14V ~ 1.326V, 2.375V ~ 2.625V | 1.14V ~ 1.326V, 2.375V ~ 2.625V | 1.14V ~ 1.326V, 2.375V ~ 2.625V | 1.14V ~ 1.326V, 2.375V ~ 2.625V | 1.14V ~ 1.326V, 2.375V ~ 2.625V |
| Voltage - Supply, Digital | 1.14V ~ 1.326V | - | 1.14V ~ 1.326V | 1.14V ~ 1.326V | 1.14V ~ 1.326V | 1.14V ~ 1.326V |
| INL/DNL (LSB) | ±2.7, ±1.7 | ±2.7, ±1.7 | ±2.7, ±1.7 | ±2.7, ±1.7 | ±2.7, ±1.7 | ±2.7, ±1.7 |
| Architecture | Quad-Switch | Quad-Switch | Quad-Switch | Quad-Switch | Quad-Switch | Quad-Switch |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

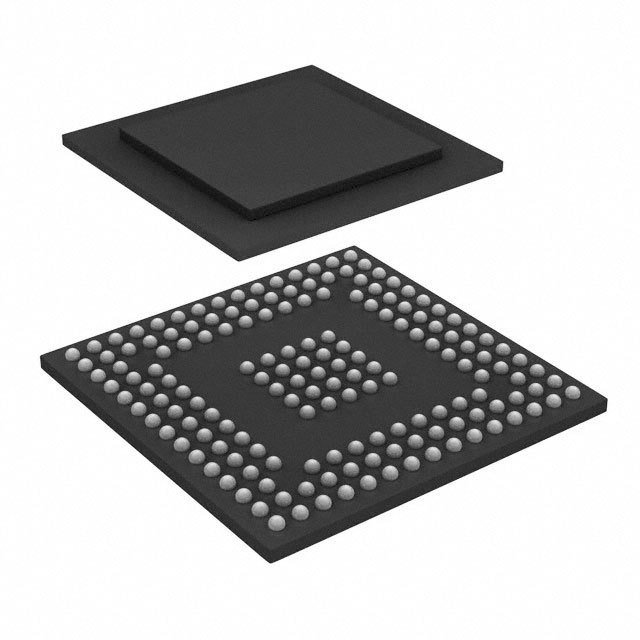

| Package / Case | 165-VFBGA, CSPBGA | 169-VFBGA, CSPBGA | 165-VFBGA, CSPBGA | 169-VFBGA, CSPBGA | 169-VFBGA, CSPBGA | 169-VFBGA, CSPBGA |
| Supplier Device Package | 165-CSPBGA (8x8) | 169-CSPBGA (11x11) | 165-CSPBGA (8x8) | 169-CSPBGA (11x11) | 169-CSPBGA (11x11) | 169-CSPBGA (11x11) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
