Please send RFQ , we will respond immediately.

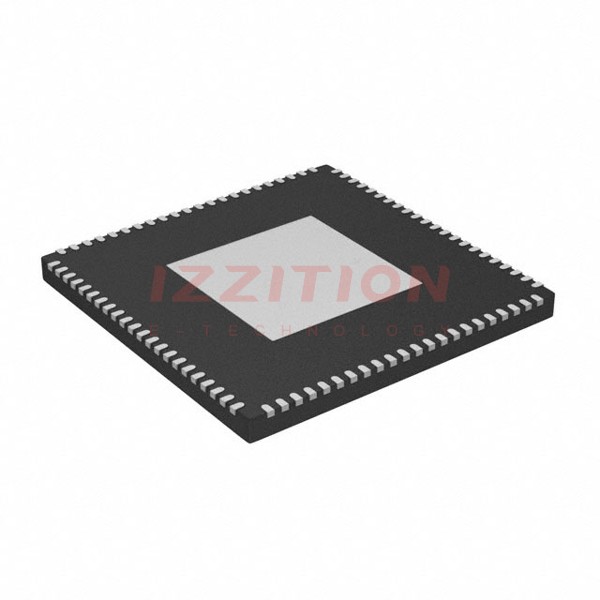

| Part Number | AD9154BCPZ | AD9114BCPZ | AD9144BCPZ | AD9152BCPZ | AD9154BCPAZ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Bits | 16 | 8 | 16 | 16 | 16 |
| Number of D/A Converters | 4 | 2 | 4 | 2 | 4 |
| Settling Time | - | 11.5ns (Typ) | 20ns (Typ) | - | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes | Yes |
| Data Interface | JESD204B | Parallel | JESD204B | JESD204B | JESD204B |
| Reference Type | Internal | External, Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V | 1.7V ~ 3.5V | 3.13V ~ 3.47V | 3.13V ~ 3.47V | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.14V ~ 1.26V | 1.7V ~ 3.5V | 1.14V ~ 1.26V | 1.14V ~ 1.26V | 1.14V ~ 1.26V |
| INL/DNL (LSB) | ±8.2, ±4.3 | ±0.03, ±0.02 | ±2, ±1 | ±10, ±5 | ±8.2, ±4.3 |
| Architecture | Quad-Switch | Current Source | Oversampling Interpolating DAC | Current Source | Quad-Switch |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 88-VFQFN Exposed Pad, CSP | 40-VFQFN Exposed Pad, CSP | 88-VFQFN Exposed Pad, CSP | 56-WFQFN Exposed Pad, CSP | 88-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 88-LFCSP-VQ (12x12) | 40-LFCSP-VQ (6x6) | 88-LFCSP-VQ (12x12) | 56-LFCSP-WQ (8x8) | 88-LFCSP-VQ (12x11.75) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
