Please send RFQ , we will respond immediately.

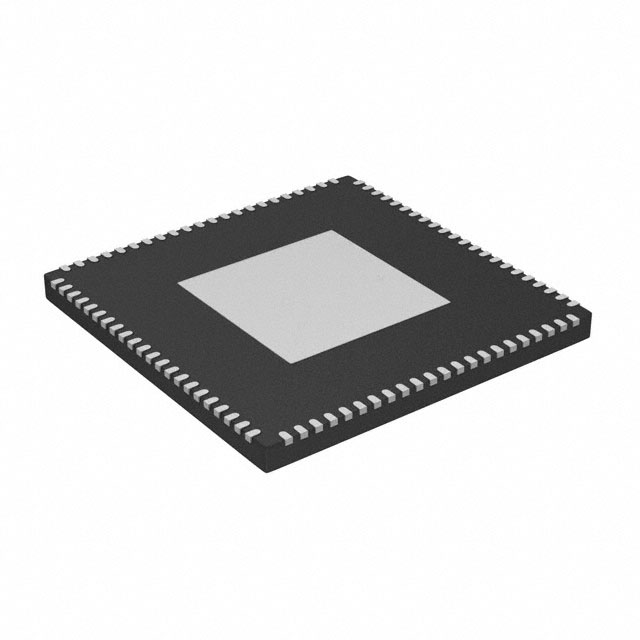

| Part Number | AD9135BCPZ | AD9136BCPZ | AD9139BCPZ | AD9115BCPZ | AD9125BCPZ | AD9135BCPAZ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Bits | 11 | 16 | 16 | 10 | 16 | 11 |
| Number of D/A Converters | 2 | 2 | 1 | 2 | 2 | 2 |
| Settling Time | 20ns (Typ) | 20ns (Typ) | 20ns (Typ) | 11.5ns (Typ) | 20ns (Typ) | 20ns (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes | Yes | Yes |
| Data Interface | JESD204B | JESD204B | LVDS - Parallel | Parallel | Parallel | JESD204B |
| Reference Type | Internal | Internal | External, Internal | External, Internal | External, Internal | Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V | 3.13V ~ 3.47V | 3.13V ~ 3.47V | 1.7V ~ 3.5V | 3.13V ~ 3.47V | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.14V ~ 1.26V | 1.14V ~ 1.26V | 1.7V ~ 1.9V | 1.7V ~ 3.5V | 1.71V ~ 1.89V | 1.14V ~ 1.26V |
| INL/DNL (LSB) | ±0.35, ±0.175 | ±2, ±1 | ±3.7, ±2.1 | ±0.19, ±0.06 | ±3.7, ±2.1 | ±0.35, ±0.175 |
| Architecture | Current Source | Current Source | Current Source | Current Source | Current Source | Current Source |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 88-VFQFN Exposed Pad, CSP | 88-VFQFN Exposed Pad, CSP | 72-VFQFN Exposed Pad, CSP | 40-VFQFN Exposed Pad, CSP | 72-VFQFN Exposed Pad, CSP | 88-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 88-LFCSP-VQ (12x12) | 88-LFCSP-VQ (12x12) | 72-LFCSP-VQ (10x10) | 40-LFCSP-VQ (6x6) | 72-LFCSP-VQ (10x10) | 88-LFCSP-VQ (12x11.75) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
