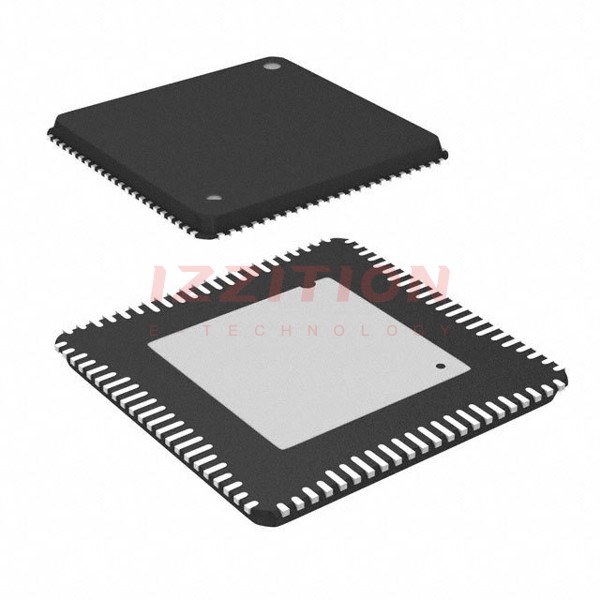

| Part Number | AD9135BCPAZ | AD9135BCPZ | AD9136BCPAZ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Number of Bits | 11 | 11 | 16 |
| Number of D/A Converters | 2 | 2 | 2 |
| Settling Time | 20ns (Typ) | 20ns (Typ) | 20ns (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes |
| Data Interface | JESD204B | JESD204B | JESD204B |
| Reference Type | Internal | Internal | Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V | 3.13V ~ 3.47V | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.14V ~ 1.26V | 1.14V ~ 1.26V | 1.14V ~ 1.26V |
| INL/DNL (LSB) | ±0.35, ±0.175 | ±0.35, ±0.175 | ±2, ±1 |
| Architecture | Current Source | Current Source | Current Source |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 88-VFQFN Exposed Pad, CSP | 88-VFQFN Exposed Pad, CSP | 88-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 88-LFCSP-VQ (12x11.75) | 88-LFCSP-VQ (12x12) | 88-LFCSP-VQ (12x11.75) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
