Please send RFQ , we will respond immediately.

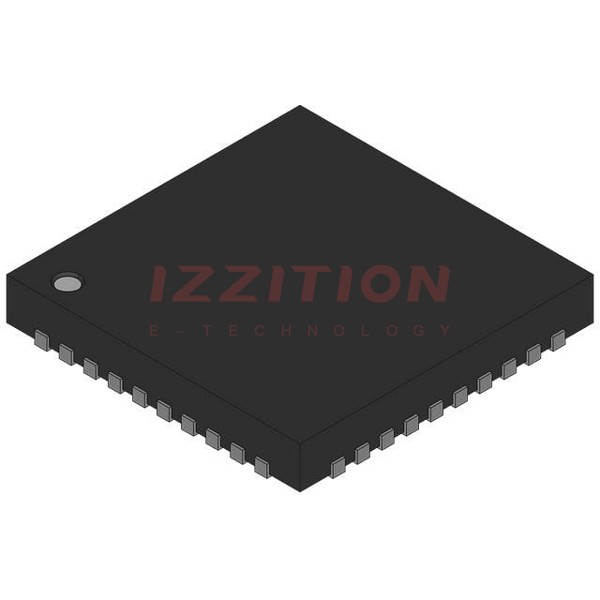

| Part Number | AD9032BZ | AD9022BZ | AD9032AZ | AD9032BD |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 25.6M | 20M | 25.6M | 25.6M |
| Number of Inputs | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | - | Parallel | - | - |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:3 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 3 | 1 | 1 |
| Architecture | Flash | Multi-Slope | Flash | Flash |
| Reference Type | Internal | External, Internal | Internal | Internal |
| Voltage - Supply, Analog | -4.94V ~ -5.45V, 4.75V ~ 5.25V | -4.94V ~ -5.95V, 4.75V ~ 5.25V | -4.94V ~ -5.45V, 4.75V ~ 5.25V | -4.94V ~ -5.45V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -4.94V ~ -5.45V, 4.75V ~ 5.25V | -4.94V ~ -5.95V, 4.75V ~ 5.25V | -4.94V ~ -5.45V, 4.75V ~ 5.25V | -4.94V ~ -5.45V, 4.75V ~ 5.25V |
| Features | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -20°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Package / Case | 40-CFlatPack | 28-CDIP (0.600", 15.24mm) | 40-CFlatPack | 40-CDIP (0.900", 22.86mm) |
| Supplier Device Package | 40-CFlatPack | 28-CDIP | 40-CFlatPack | 40-CDIP |
| Mounting Type | Surface Mount | Through Hole | Surface Mount | Through Hole |
