Please send RFQ , we will respond immediately.

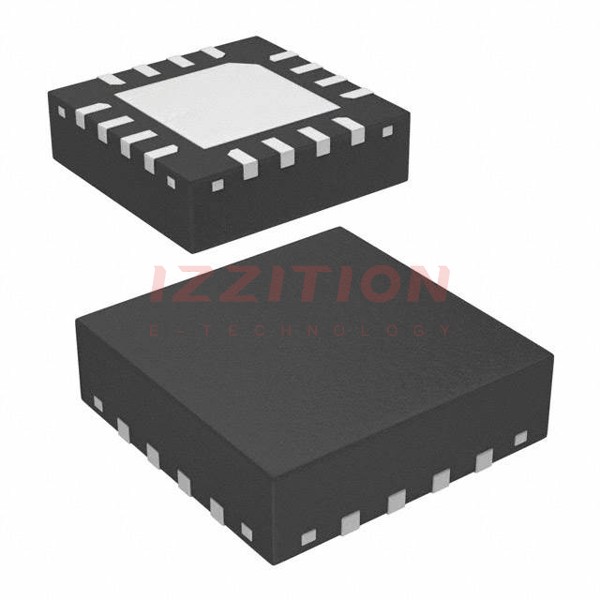

| Part Number | AD8567ACPZ-REEL | AD8567ACPZ-REEL7 | AD8597ACPZ-REEL | AD8557ACPZ-REEL | AD8567ACP-REEL |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose | Zero-Drift | General Purpose |
| Number of Circuits | 4 | 4 | 1 | 1 | 4 |
| Output Type | Rail-to-Rail | Rail-to-Rail | - | - | Rail-to-Rail |
| Slew Rate | 6V/µs | 6V/µs | 16V/µs | - | 6V/µs |
| Gain Bandwidth Product | 5 MHz | 5 MHz | 10 MHz | 2 MHz | 5 MHz |
| -3db Bandwidth | - | - | - | - | - |
| Current - Input Bias | 80 nA | 80 nA | 25 nA | 18 nA | 80 nA |
| Voltage - Input Offset | 2 mV | 2 mV | 10 µV | 2 µV | 2 mV |
| Current - Supply | 700µA (x4 Channels) | 700µA (x4 Channels) | 5mA | 1.8mA | 700µA (x4 Channels) |
| Current - Output / Channel | 35 mA | 35 mA | 52 mA | 55 mA | 35 mA |
| Voltage - Supply Span (Min) | 4.5 V | 4.5 V | 9 V | 2.7 V | 4.5 V |
| Voltage - Supply Span (Max) | 16 V | 16 V | 36 V | 5.5 V | 16 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 8-VFDFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (4x4) | 16-LFCSP (4x4) | 8-LFCSP-VD (3x3) | 16-LFCSP-VQ (4x4) | 16-LFCSP (4x4) |
