Please send RFQ , we will respond immediately.

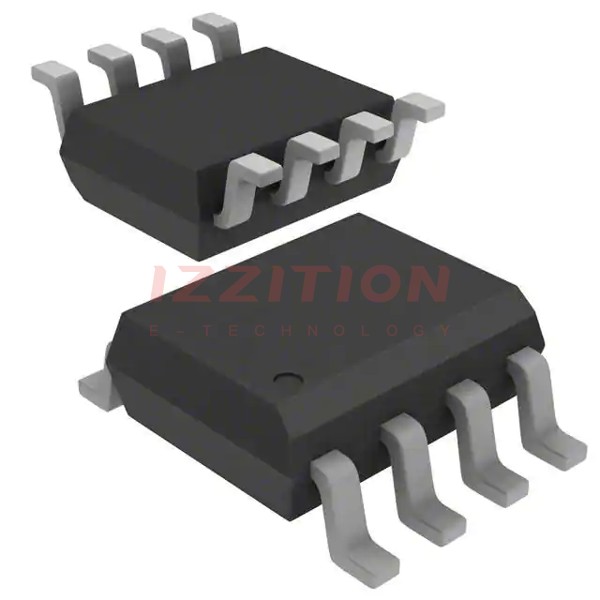

| Part Number | AD8561ARZ-REEL | AD8561ARZ-REEL7 | AD8564ARZ-REEL | AD8561AR-REEL | AD8561ARU-REEL | AD8561ARUZ-REEL |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active |
| Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Elements | 1 | 1 | 4 | 1 | 1 | 1 |
| Output Type | CMOS, Complementary, TTL | CMOS, Complementary, TTL | CMOS, TTL | CMOS, Complementary, TTL | CMOS, Complementary, TTL | CMOS, Complementary, TTL |
| Voltage - Supply, Single/Dual (±) | 3V ~ 10V, ±1.5V ~ 5V | 3V ~ 10V, ±1.5V ~ 5V | - | 3V ~ 10V, ±1.5V ~ 5V | 3V ~ 10V, ±1.5V ~ 5V | 3V ~ 10V, ±1.5V ~ 5V |
| Voltage - Input Offset (Max) | 7mV @ 5V | 7mV @ 5V | 7mV @ 5V | 7mV @ 5V | 7mV @ 5V | 7mV @ 5V |
| Current - Input Bias (Max) | 6µA @ 5V | 6µA @ 5V | 4µA @ 5V | 6µA @ 5V | 6µA @ 5V | 6µA @ 5V |
| Current - Output (Typ) | - | - | - | - | - | - |
| Current - Quiescent (Max) | 6mA, 3.3mA, 5.5mA | 6mA, 3.3mA, 5.5mA | 14mA, 14mA, 7mA | 6mA, 3.3mA, 5.5mA | 6mA, 3.3mA, 5.5mA | 6mA, 3.3mA, 5.5mA |
| CMRR, PSRR (Typ) | 85dB CMRR, 65dB PSRR | 85dB CMRR, 65dB PSRR | 85dB CMRR, 80dB PSRR | 85dB CMRR, 65dB PSRR | 85dB CMRR, 65dB PSRR | 85dB CMRR, 65dB PSRR |
| Propagation Delay (Max) | 9.8ns | 9.8ns | 9.8ns | 9.8ns | 9.8ns | 9.8ns |
| Hysteresis | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-SOIC | 8-SOIC | 16-SOIC | 8-SOIC | 8-TSSOP | 8-TSSOP |
