| Part Number | AD847SQ/883B | AD848SQ/883B | AD842SQ/883B | AD843SQ/883B | AD844SQ/883B | AD845SQ/883B |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose | Current Feedback | J-FET |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - | - |
| Slew Rate | 300V/µs | 300V/µs | 375V/µs | 250V/µs | 2000V/µs | 100V/µs |
| Gain Bandwidth Product | 50 MHz | - | 80 MHz | 34 MHz | - | 16 MHz |
| -3db Bandwidth | - | - | - | - | 60 MHz | - |
| Current - Input Bias | 3.3 µA | - | 4.2 µA | 2.5 nA | 200 pA | 750 pA |
| Voltage - Input Offset | 500 µV | - | 500 µV | 1 mV | 50 µV | 250 µV |
| Current - Supply | 4.8mA | 5.1mA | 13mA | 12mA | 6.5mA | 10mA |
| Current - Output / Channel | 32 mA | 32 mA | 100 mA | 50 mA | 80 mA | 50 mA |
| Voltage - Supply Span (Min) | 9 V | 9 V | 10 V | 9 V | 9 V | 4.75 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V | 36 V | 36 V | 18 V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |

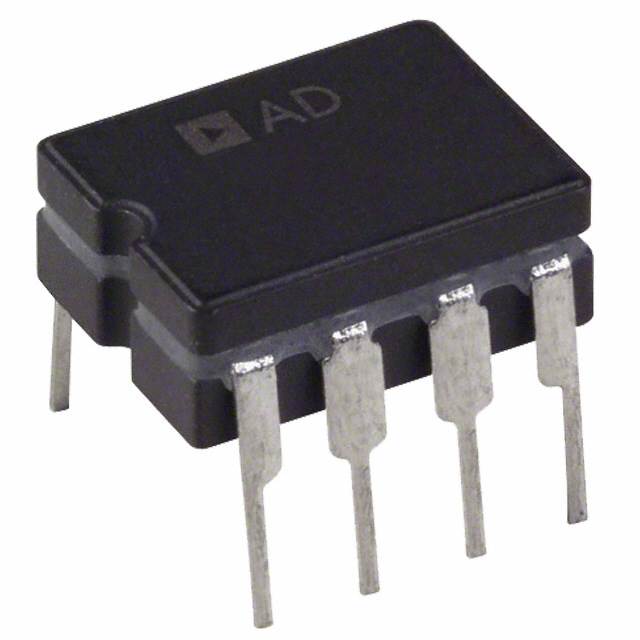

| Package / Case | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 14-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | - |
| Supplier Device Package | 8-CERDIP | 8-CERDIP | 14-CERDIP | 8-CERDIP | 8-CERDIP | - |
