Please send RFQ , we will respond immediately.
| Part Number | AD8476ACPZ-R7 | AD8476BCPZ-R7 | AD8476ACPZ-RL | AD8426ACPZ-R7 | AD8475ACPZ-R7 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Amplifier Type | Differential | Differential | Differential | Instrumentation | Differential |
| Number of Circuits | 1 | 1 | 1 | 2 | 1 |
| Output Type | Differential, Rail-to-Rail | Differential, Rail-to-Rail | Differential, Rail-to-Rail | Rail-to-Rail | Differential, Rail-to-Rail |
| Slew Rate | 10V/µs | 10V/µs | 10V/µs | 0.6V/µs | 50V/µs |
| Gain Bandwidth Product | - | - | - | - | - |
| -3db Bandwidth | 5 MHz | 5 MHz | 5 MHz | 1 MHz | 150 MHz |
| Current - Input Bias | - | - | - | 20 nA | - |
| Voltage - Input Offset | - | - | - | 200 µV | - |
| Current - Supply | 330µA | 330µA | 330µA | 350µA (x2 Channels) | 3mA |
| Current - Output / Channel | 35 mA | 35 mA | 35 mA | 13 mA | 110 mA |
| Voltage - Supply Span (Min) | 3 V | 3 V | 3 V | 2.7 V | 3 V |
| Voltage - Supply Span (Max) | 18 V | 18 V | 18 V | 36 V | 10 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

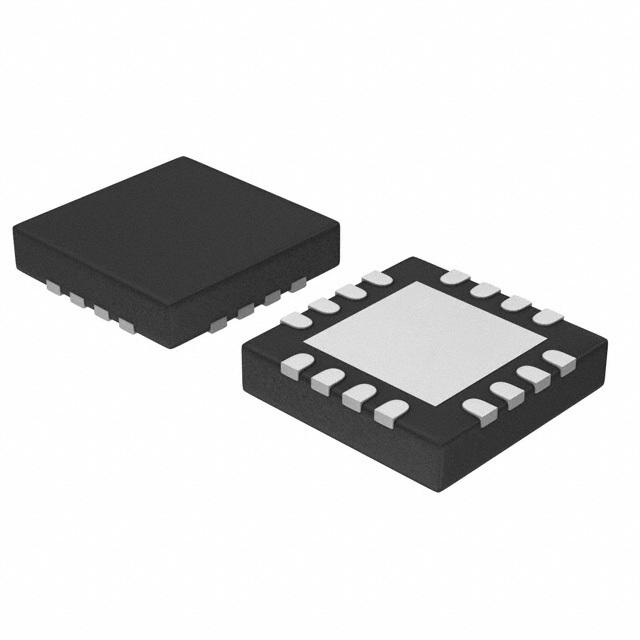

| Package / Case | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-VQFN, CSP | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-WQ (3x3) | 16-LFCSP-WQ (3x3) | 16-LFCSP-WQ (3x3) | 16-LFCSP-VQ (4x3.75) | 16-LFCSP-WQ (3x3) |
