Please send RFQ , we will respond immediately.

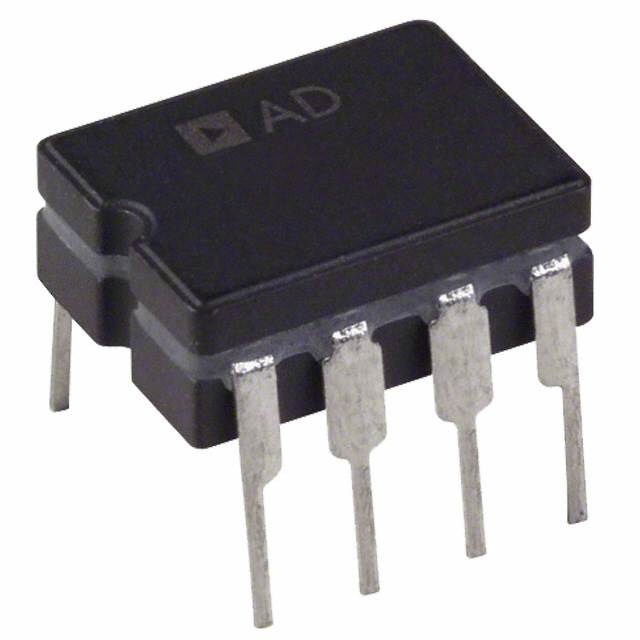

| Part Number | AD844AQ | AD844BQ | AD844SQ | AD845AQ | AD847AQ | AD848AQ | AD843AQ | AD844AN |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Amplifier Type | Current Feedback | Current Feedback | Current Feedback | J-FET | General Purpose | General Purpose | General Purpose | Current Feedback |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - | - | - | - |
| Slew Rate | 2000V/µs | 2000V/µs | 2000V/µs | 100V/µs | 300V/µs | 300V/µs | 250V/µs | 2000V/µs |
| Gain Bandwidth Product | - | - | - | 16 MHz | 50 MHz | 175 MHz | 34 MHz | - |
| -3db Bandwidth | 60 MHz | 60 MHz | 60 MHz | - | - | - | - | 60 MHz |
| Current - Input Bias | 200 pA | 150 pA | 200 pA | 750 pA | 3.3 µA | 3.3 µA | 50 pA | 200 pA |
| Voltage - Input Offset | 50 µV | 50 µV | 50 µV | 700 µV | 500 µV | 200 µV | 1 mV | 50 µV |
| Current - Supply | 6.5mA | 6.5mA | 6.5mA | 10mA | 5.3mA | 5.1mA | 12mA | 6.5mA |
| Current - Output / Channel | 80 mA | 80 mA | 80 mA | 50 mA | 32 mA | 32 mA | 50 mA | 80 mA |
| Voltage - Supply Span (Min) | 9 V | 9 V | 9 V | 9.5 V | 9 V | 9 V | 9 V | 9 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-PDIP |
