Please send RFQ , we will respond immediately.

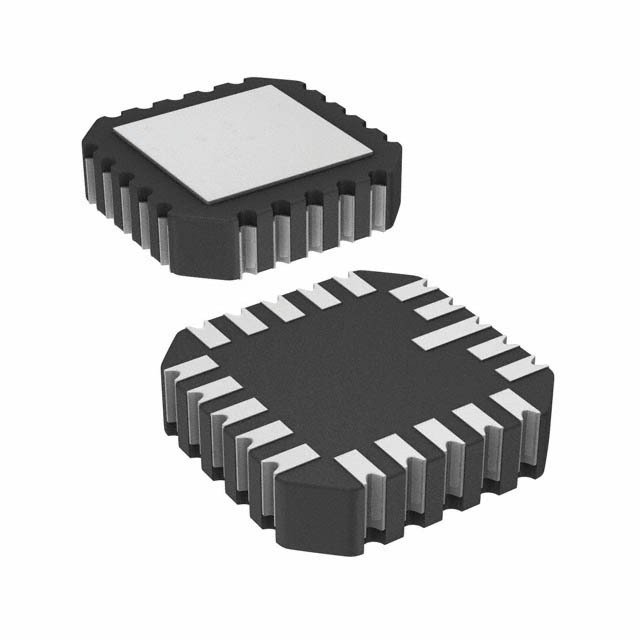

| Part Number | AD842SE/883B | AD843SE/883B | AD842SH/883B | AD842SQ/883B | AD840SE/883B | AD841SE/883B |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - | - |
| Slew Rate | 375V/µs | 250V/µs | 375V/µs | 375V/µs | 400V/µs | 300V/µs |
| Gain Bandwidth Product | 80 MHz | 34 MHz | 80 MHz | 80 MHz | 400 MHz | 40 MHz |
| -3db Bandwidth | - | - | - | - | - | - |
| Current - Input Bias | 4.2 µA | 2.5 nA | 4.2 µA | 4.2 µA | 3.5 µA | 3.5 µA |
| Voltage - Input Offset | 500 µV | 1 mV | 500 µV | 500 µV | 200 µV | 500 µV |
| Current - Supply | 13mA | 12mA | 13mA | 13mA | 12mA | 11mA |
| Current - Output / Channel | 100 mA | 50 mA | 100 mA | 100 mA | 50 mA | 50 mA |
| Voltage - Supply Span (Min) | 10 V | 9 V | 10 V | 10 V | 10 V | 10 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Through Hole | Surface Mount | Surface Mount |
| Package / Case | 20-CLCC | 20-CLCC | TO-8 Style, 12 Leads | 14-CDIP (0.300", 7.62mm) | 20-CLCC | 20-CLCC |
| Supplier Device Package | 20-CLCC (9x9) | 20-CLCC (9x9) | TO-8-12 | 14-CERDIP | 20-CLCC (9x9) | 20-CLCC (9x9) |
