Please send RFQ , we will respond immediately.

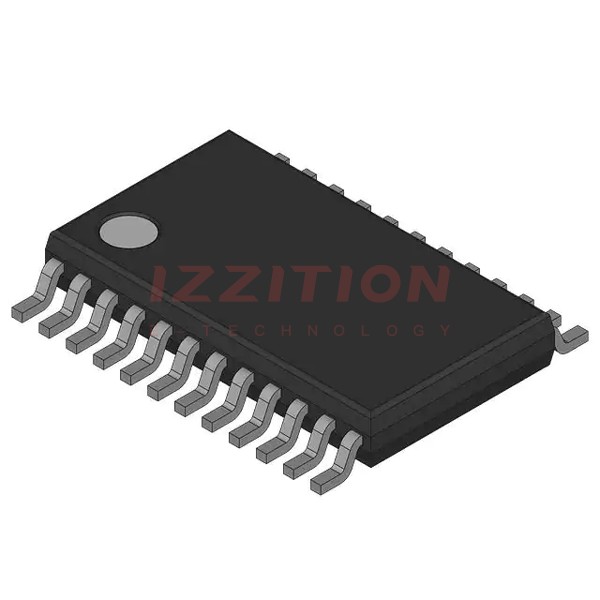

| Part Number | AD8403ARU50-REEL | AD8403ARZ50-REEL | AD8403ARUZ50-REEL | AD8402ARU50-REEL | AD8403AR50-REEL | AD8403ARU10-REEL |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete |
| Taper | Linear | Linear | Linear | Linear | Linear | Linear |
| Configuration | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | 4 | 4 | 4 | 2 | 4 | 4 |
| Number of Taps | 256 | 256 | 256 | 256 | 256 | 256 |
| Resistance (Ohms) | 50k | 50k | 50k | 50k | 50k | 10k |
| Interface | SPI | SPI | SPI | SPI | SPI | SPI |
| Memory Type | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile |
| Voltage - Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Features | Cascade Pin | Cascade Pin | Cascade Pin | - | Cascade Pin | Cascade Pin |
| Tolerance | ±1% | ±30% | ±30% | ±30% | ±30% | ±20% |
| Temperature Coefficient (Typ) | 500ppm/°C | 500ppm/°C | 500ppm/°C | 500ppm/°C | 500ppm/°C | 500ppm/°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 24-TSSOP | 24-SOIC | 24-TSSOP | 14-TSSOP | 24-SOIC | 24-TSSOP |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-TSSOP (0.173", 4.40mm Width) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Resistance - Wiper (Ohms) (Typ) | 200 | 200 | 200 | 200 | 200 | 200 |
