Please send RFQ , we will respond immediately.
| Part Number | AD8290ACPZ-R7 | AD8295ACPZ-R7 | AD8290ACPZ-RL | AD8260ACPZ-R7 | AD8270ACPZ-R7 | AD8290ACPZ-R2 |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Active | Active | Discontinued at Digi-Key |
| Amplifier Type | Current Sense | Instrumentation | Current Sense | Variable Gain | Differential | Current Sense |
| Number of Circuits | 1 | 3 | 1 | 1 | 2 | 1 |
| Output Type | - | - | - | Differential | Differential, Rail-to-Rail | - |
| Slew Rate | - | 2V/µs | - | 730V/µs | 30V/µs | - |
| Gain Bandwidth Product | - | 1 MHz | - | - | 20 MHz | - |
| -3db Bandwidth | 250 kHz | 1.2 MHz | 250 Hz | 195 MHz | - | 250 Hz |
| Current - Input Bias | 100 pA | 500 pA | 100 pA | 200 nA | 500 pA | 100 pA |
| Voltage - Input Offset | - | 120 µV | - | - | 450 µV | - |
| Current - Supply | 1.2mA | 2mA | 1.2mA | 28.3mA | 2.3mA (x2 Channels) | 1.2mA |
| Current - Output / Channel | - | 18 mA | - | 310 mA | 100 mA | - |
| Voltage - Supply Span (Min) | 2.6 V | 4.6 V | 2.6 V | 3.3 V | 5 V | 2.6 V |
| Voltage - Supply Span (Max) | 5.5 V | 36 V | 5.5 V | 10 V | 36 V | 5.5 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

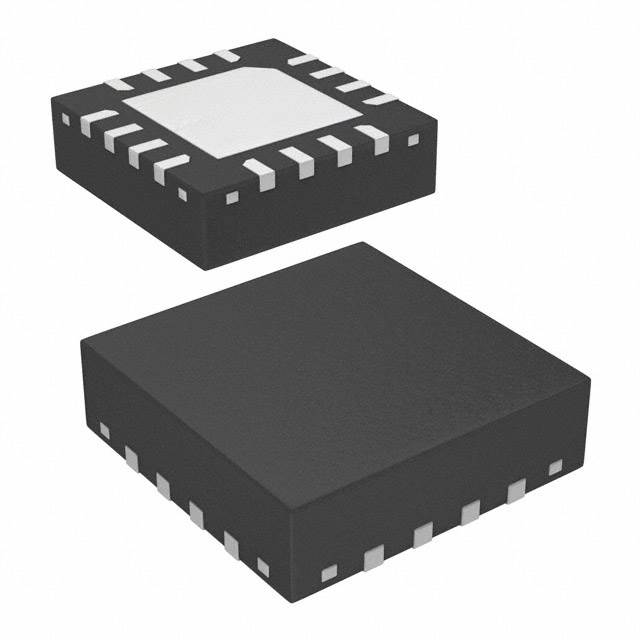

| Package / Case | 16-UFQFN Exposed Pad, CSP | 16-VQFN, CSP | 16-UFQFN Exposed Pad, CSP | 32-WFQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-UFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-UQ (3x3) | 16-LFCSP-VQ (4x3.75) | 16-LFCSP-UQ (3x3) | 32-LFCSP (5x5) | 16-LFCSP-WQ (4x4) | 16-LFCSP-UQ (3x3) |
