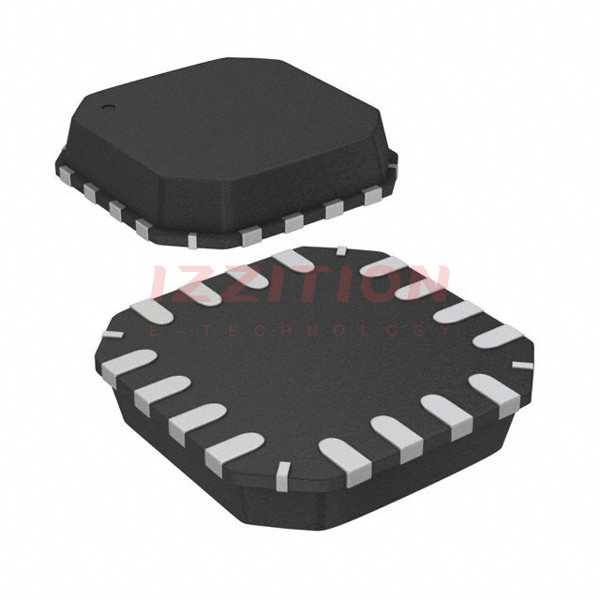

| Part Number | AD8224HACPZ-R7 | AD8224HBCPZ-R7 | AD8224HACPZ-RL | AD8222HACPZ-R7 | AD8224ACPZ-R7 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Amplifier Type | Instrumentation | Instrumentation | Instrumentation | Instrumentation | Instrumentation |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | - | Rail-to-Rail |
| Slew Rate | 2V/µs | 2V/µs | 2V/µs | 2V/µs | 2V/µs |
| Gain Bandwidth Product | - | - | - | 7 MHz | - |
| -3db Bandwidth | 1.5 MHz | 1.5 MHz | 1.5 MHz | 1.2 MHz | 1.5 MHz |
| Current - Input Bias | 25 pA | 10 pA | 25 pA | 500 pA | 25 pA |
| Voltage - Input Offset | 300 µV | 175 µV | 300 µV | 120 µV | 300 µV |
| Current - Supply | 750µA (x2 Channels) | 750µA (x2 Channels) | 750µA (x2 Channels) | 900µA (x2 Channels) | 750µA (x2 Channels) |
| Current - Output / Channel | 15 mA | 15 mA | 15 mA | 18 mA | 15 mA |
| Voltage - Supply Span (Min) | 4.5 V | 4.5 V | 4.5 V | 4.6 V | 4.5 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V | 36 V | 36 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VQFN, CSP | 16-VQFN, CSP | 16-VQFN, CSP | 16-VQFN, CSP | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x3.75) | 16-LFCSP-VQ (4x3.75) | 16-LFCSP-VQ (4x3.75) | 16-LFCSP-VQ (4x3.75) | 16-LFCSP-WQ (4x4) |
