Please send RFQ , we will respond immediately.

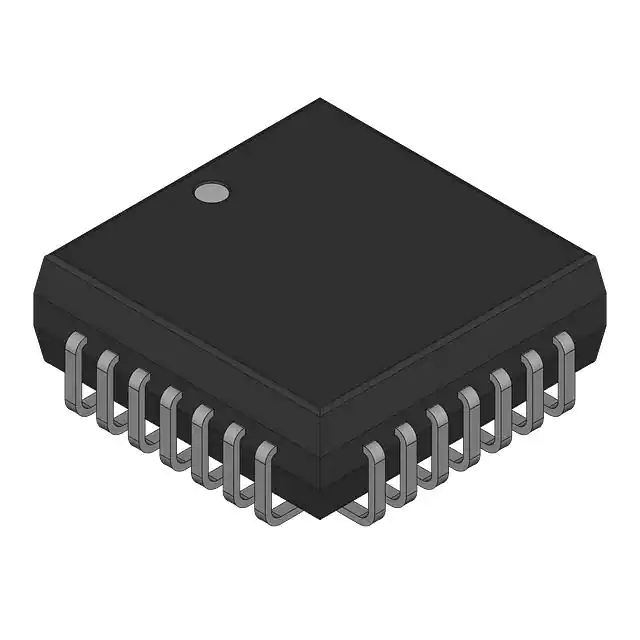

| Part Number | AD7871KP-REEL | AD7870KP-REEL | AD7871JP-REEL |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Obsolete | Obsolete |
| Number of Bits | 14 | 12 | 14 |
| Sampling Rate (Per Second) | 83k | 100k | 83k |
| Number of Inputs | 14 | 1 | 1 |
| Input Type | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel, Serial | SPI, Parallel | Parallel, Serial |
| Configuration | S/H-ADC | S/H-ADC | ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 0:1 |
| Number of A/D Converters | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR |
| Reference Type | Internal | Internal | Internal |
| Voltage - Supply, Analog | ±4.75V ~ 5.25V | ±5V | ±5V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V | ±5V | ±5V |
| Features | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
