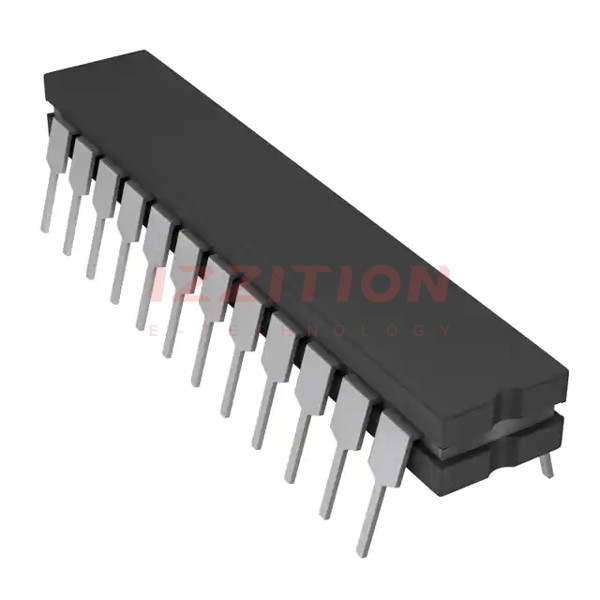

Analog Devices Inc. AD7845AQ

Manufacturer No:
AD7845AQ
Manufacturer:
Analog Devices Inc.
Package:
Tube
Datasheet:
AD7845AQ Datasheet
ECAD Model:
-
Description:
IC DAC 12BIT V-OUT 24CDIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:1
Settling Time:5µs
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:Parallel
Reference Type:External
Voltage - Supply, Analog:±14.25V ~ 15.75V
Voltage - Supply, Digital:-
INL/DNL (LSB):±1 (Max), ±1 (Max)
Architecture:R-2R
Operating Temperature:-40°C ~ 85°C
Package / Case:24-CDIP (0.300", 7.62mm)
Supplier Device Package:24-CDIP
Mounting Type:Through Hole
