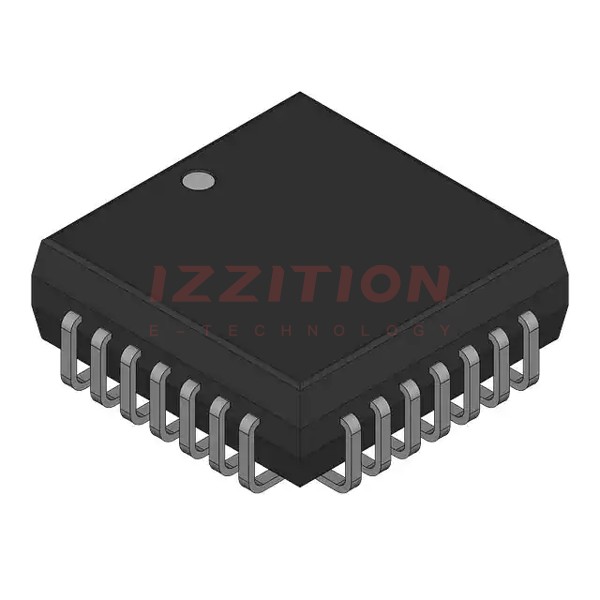

| Part Number | AD7840JP-REEL | AD7840JPZ-REEL | AD7846JP-REEL | AD7840KP-REEL | AD7845JP-REEL |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete |
| Number of Bits | 14 | 14 | 16 | 14 | - |
| Number of D/A Converters | 1 | 1 | 1 | 1 | - |
| Settling Time | 4µs | 4µs | 9µs | 4µs | - |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | - |
| Differential Output | No | No | No | No | - |
| Data Interface | Parallel, Serial | Parallel, Serial | Parallel | Parallel, Serial | - |
| Reference Type | External, Internal | External, Internal | External | External, Internal | - |
| Voltage - Supply, Analog | ±5V | ±5V | ±11.4V ~ 15.75V | ±5V | - |
| Voltage - Supply, Digital | - | - | 5V | - | - |
| INL/DNL (LSB) | ±2 (Max), ±0.9 (Max) | ±2 (Max), ±0.9 (Max) | ±16 (Max), ±1 (Max) | ±1 (Max), ±0.9 (Max) | - |
| Architecture | R-2R | R-2R | String DAC | R-2R | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - |
| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
