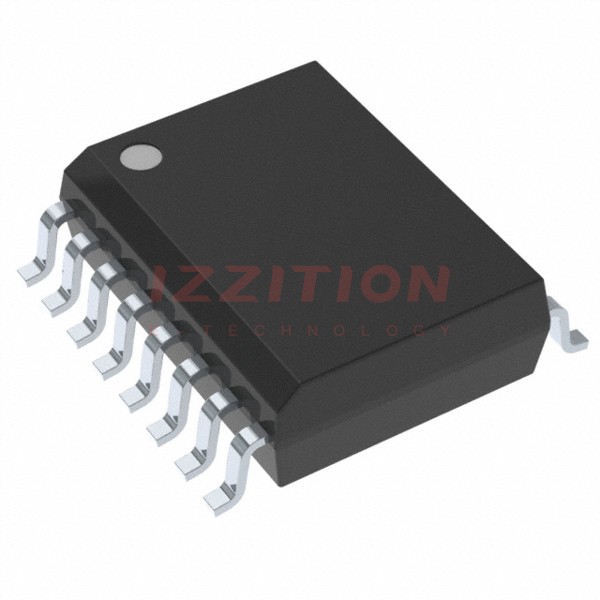

| Part Number | AD7804BRZ-REEL | AD7805BRZ-REEL | AD7808BRZ-REEL | AD7834BRZ-REEL | AD7801BRZ-REEL | AD7804BR-REEL |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Number of Bits | 10 | 10 | 10 | 14 | 8 | 10 |
| Number of D/A Converters | 4 | 4 | 8 | 4 | 1 | 4 |
| Settling Time | 4µs | 4µs | 4µs | 10µs (Typ) | 2µs | 4µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No |
| Data Interface | SPI | Parallel | SPI | SPI | Parallel | SPI |
| Reference Type | External, Internal | External, Internal | External, Internal | External | External | External, Internal |
| Voltage - Supply, Analog | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | ±11.4V ~ 15.75V | 2.7V ~ 5.5V | 3V ~ 5.5V |
| Voltage - Supply, Digital | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 5V | 2.7V ~ 5.5V | 3V ~ 5.5V |
| INL/DNL (LSB) | ±3 (Max), ±0.125 | ±3 (Max), ±0.125 | ±4 (Max), ±0.125 | ±1 (Max), ±0.9 (Max) | ±1 (Max), ±1 (Max) | ±3 (Max), ±0.125 |
| Architecture | - | - | - | R-2R | Current Source | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC | 28-SOIC | 24-SOIC | 28-SOIC | 20-SOIC | 16-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
