Please send RFQ , we will respond immediately.

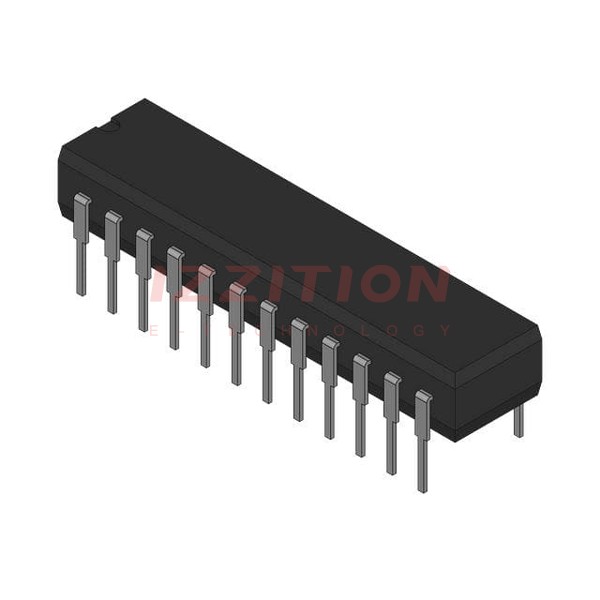

| Part Number | AD7755AN | AD7756AN | ADE7755AN | AD7751AN | AD7755AAN |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Active | Active |
| Input Impedance | 390kOhm | 390kOhm | 390kOhm | 400kOhm | 390kOhm |
| Measurement Error | 0.1% | ±0.4% | 0.1% | 0.1% | 0.1% |
| Voltage - I/O High | 2.4V, 4.5V | 2.4V, 4V | 2.4V | 2.4V, 4.5V | 2.4V, 4.5V |
| Voltage - I/O Low | 0.8V, 0.5V | 0.8V, 0.4V | 0.8V | 0.8V, 0.5V | 0.8V, 0.5V |
| Current - Supply | 2mA | 3mA | 3mA | 2mA | 2mA |
| Voltage - Supply | 4.5 V ~ 5.5 V | 4.5 V ~ 5.5 V | 4.75 V ~ 5.25 V | 4.5 V ~ 5.5 V | 4.75 V ~ 5.25 V |
| Meter Type | Single Phase | 2 x Single Phase | Single Phase | Single Phase | Single Phase |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 24-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP | 20-DIP | 24-PDIP | 24-PDIP | 24-PDIP |
