Please send RFQ , we will respond immediately.

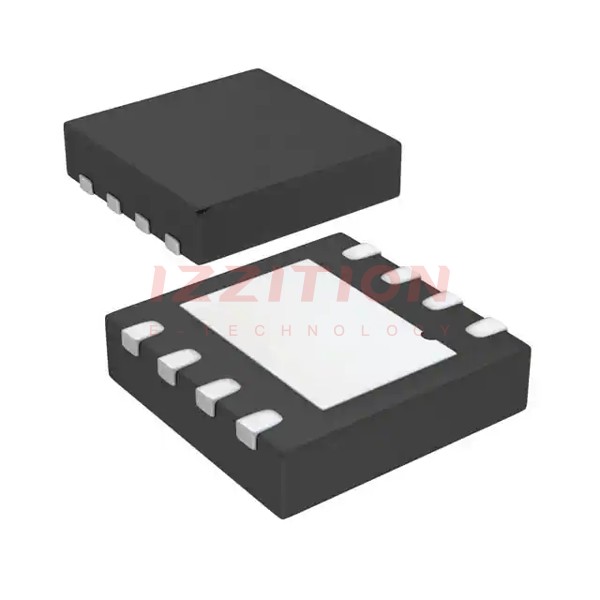

| Part Number | AD7683BCPZRL | AD7683BCPZRL7 | AD7686BCPZRL | AD7685BCPZRL | AD7687BCPZRL | AD7693BCPZRL | AD7688BCPZRL | AD7683ACPZRL |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Bits | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Sampling Rate (Per Second) | 100k | 100k | 500k | 250k | 250k | 500k | 500k | 100k |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Input Type | Pseudo-Differential | Pseudo-Differential | Pseudo-Differential | Pseudo-Differential | Differential | Differential | Differential | Pseudo-Differential |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External | External | External | External | External | External | External | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 5V | 5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 5V | 5V | 2.7V ~ 5.5V |
| Features | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 8-VDFN Exposed Pad, CSP | 8-VDFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP | 8-VDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (3x3) | 8-LFCSP-WD (3x3) | 10-LFCSP-WD (3x3) | 10-LFCSP-WD (3x3) | 10-LFCSP-WD (3x3) | 10-LFCSP-WD (3x3) | 10-LFCSP-WD (3x3) | 8-LFCSP-WD (3x3) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
