Please send RFQ , we will respond immediately.

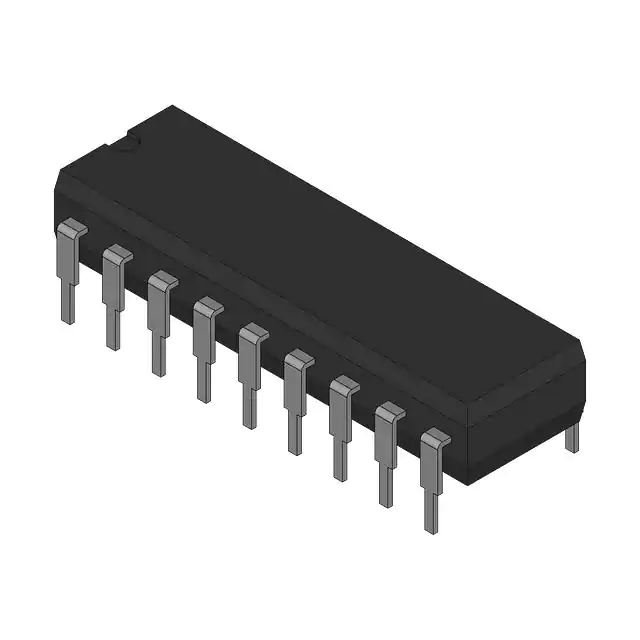

| Part Number | AD7576BQ | AD7578BQ | AD7579BQ | AD7574BQ | AD7575BQ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Active | Active |
| Number of Bits | 8 | 12 | 10 | 8 | 8 |
| Sampling Rate (Per Second) | - | - | 50k | - | - |
| Number of Inputs | 8 | 1 | - | 1 | 1 |
| Input Type | Single Ended | Single Ended | - | Single Ended | Single Ended |
| Data Interface | - | Parallel | Parallel | Parallel | Parallel |
| Configuration | ADC | ADC | - | ADC | S/H-ADC |
| Ratio - S/H:ADC | 0:1 | - | - | - | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | - | SAR | SAR |
| Reference Type | External, Internal | External | - | External | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V | +5V, -15V | - | 5V | 5V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V | 5V | - | 5V | 5V |
| Features | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Package / Case | 18-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 18-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 18-CERDIP | 24-CDIP | 24-CDIP | 24-CDIP | 18-CERDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
