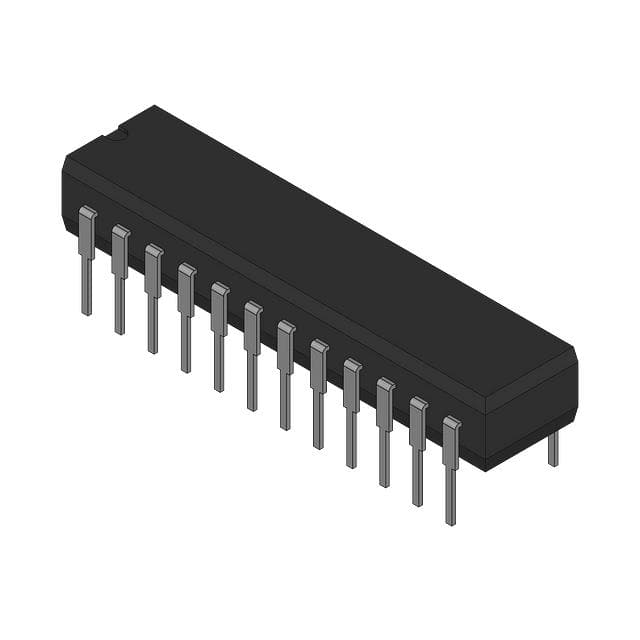

| Part Number | AD7572KN05 | AD7572KP05 | AD7572LN05 | AD7572JN05 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | - | - | - | - |
| Number of Inputs | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Configuration | MUX-ADC | MUX-ADC | ADC | ADC |
| Ratio - S/H:ADC | 0:1 | 0:1 | - | - |
| Number of A/D Converters | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR |
| Reference Type | Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V, -14.25V ~ -15.75V | 4.75V ~ 5.25V, -14.25V ~ -15.75V | +5V, -15V | +5V, -15V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V, -14.25V ~ -15.75V | 4.75V ~ 5.25V, -14.25V ~ -15.75V | +5V, -15V | +5V, -15V |
| Features | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 24-DIP (0.300", 7.62mm) | 28-LCC (J-Lead) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP | 28-PLCC (11.51x11.51) | 24-PDIP | 24-PDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
