Please send RFQ , we will respond immediately.

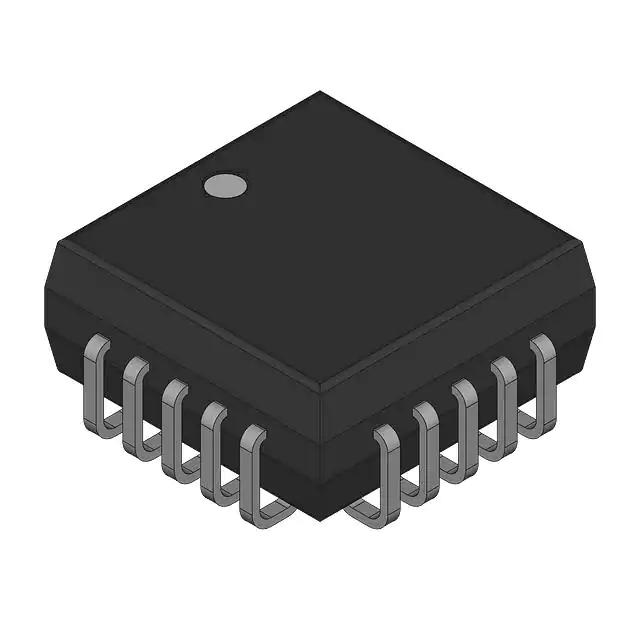

| Part Number | AD7548JP-REEL | AD7548JPZ-REEL | AD7543JP-REEL | AD7547JP-REEL |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 | 2 |
| Settling Time | 1µs (Typ), 1.5µs (Typ) | 1.5µs (Typ) | 2µs | 1.5µs |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | Yes | No |
| Data Interface | Parallel | Parallel | Serial | Parallel |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V, 11.4V ~ 15.75V | 5V, 11.4V ~ 15.75V | 5V | 10.8V ~ 16.5V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V, 11.4V ~ 15.75V | 5V, 11.4V ~ 15.75V | 5V | 10.8V ~ 16.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±2 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | Multiplying DAC, R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 28-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) | 20-PLCC (9x9) | 20-PLCC (8.97x8.97) | 28-PLCC (11.51x11.51) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
