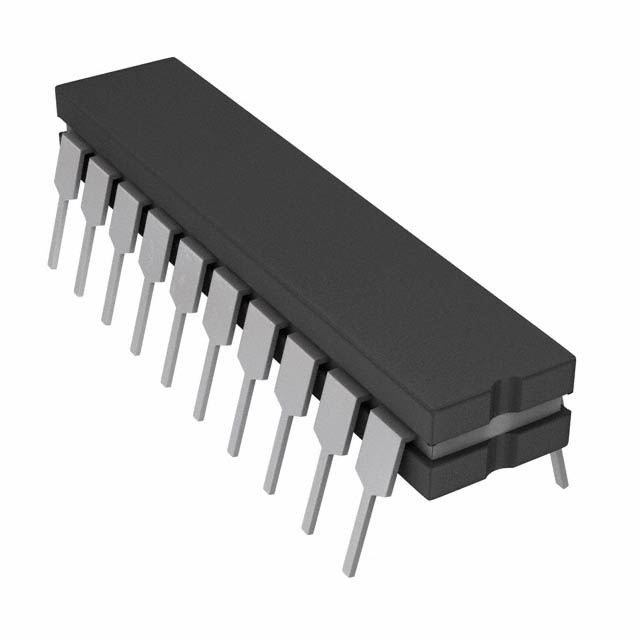

Analog Devices Inc. AD7548AQ

Manufacturer No:
AD7548AQ
Manufacturer:
Analog Devices Inc.
Package:
Bulk
Datasheet:
AD7548AQ Datasheet
ECAD Model:
-
Description:
IC DAC 12BIT A-OUT 20CDIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:1
Settling Time:1.5µs (Typ)
Output Type:Current - Unbuffered
Differential Output:No
Data Interface:Parallel
Reference Type:External
Voltage - Supply, Analog:5V, 11.4V ~ 15.75V
Voltage - Supply, Digital:5V, 11.4V ~ 15.75V
INL/DNL (LSB):±1 (Max), ±1 (Max)
Architecture:R-2R
Operating Temperature:-40°C ~ 85°C
Package / Case:20-CDIP (0.300", 7.62mm)
Supplier Device Package:20-CERDIP
Mounting Type:Through Hole
0 Remaining View Similar

In Stock

$39.92
5

Please send RFQ , we will respond immediately.

Similar Products

Part Number AD7548AQ AD7548TQ   AD7548BQ   AD7549AQ   AD7545AQ   AD7547AQ
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Obsolete Obsolete Active Obsolete
Number of Bits 12 12 12 12 12 -
Number of D/A Converters 1 1 1 2 1 -
Settling Time 1.5µs (Typ) 1µs (Typ), 1.5µs (Typ) 1.5µs (Typ) 1.5µs 2µs -
Output Type Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered -
Differential Output No No No No No -
Data Interface Parallel Parallel Parallel Parallel Parallel -
Reference Type External External External External External -
Voltage - Supply, Analog 5V, 11.4V ~ 15.75V 4.75V ~ 5.25V, 11.4V ~ 15.75V 5V, 11.4V ~ 15.75V 15V 5V ~ 15V -
Voltage - Supply, Digital 5V, 11.4V ~ 15.75V 4.75V ~ 5.25V, 11.4V ~ 15.75V 5V, 11.4V ~ 15.75V 15V 5V ~ 15V -
INL/DNL (LSB) ±1 (Max), ±1 (Max) ±0.5 (Max), ±0.5 (Max) ±0.5 (Max), ±0.5 (Max) ±1 (Max), ±1 (Max) ±2 (Max), ±4 (Max) -
Architecture R-2R Multiplying DAC, R-2R R-2R R-2R R-2R -
Operating Temperature -40°C ~ 85°C -55°C ~ 125°C -40°C ~ 85°C -40°C ~ 85°C -25°C ~ 85°C -
Package / Case 20-CDIP (0.300", 7.62mm) 20-CDIP (0.300", 7.62mm) 20-CDIP (0.300", 7.62mm) 20-CDIP (0.300", 7.62mm) 20-CDIP (0.300", 7.62mm) 24-CDIP (0.300", 7.62mm)
Supplier Device Package 20-CERDIP 20-CERDIP 20-CERDIP 20-CERDIP 20-CERDIP 24-CDIP
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
