Please send RFQ , we will respond immediately.

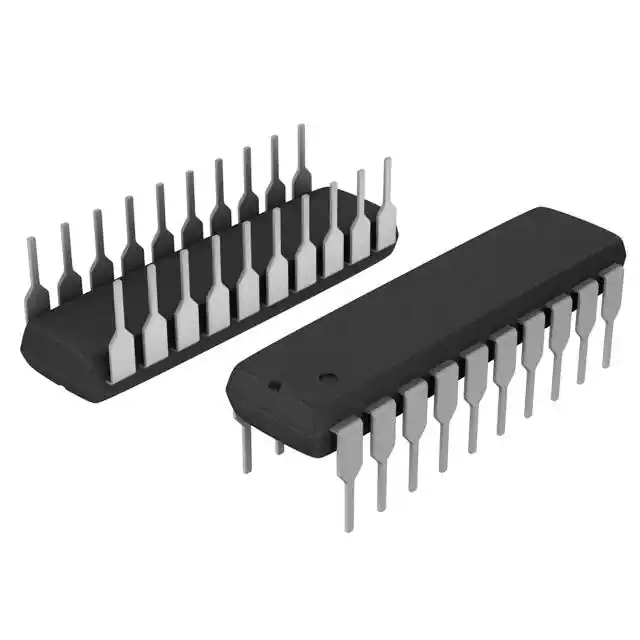

| Part Number | AD7545KN | AD7545KP | AD7545KNZ | AD7545LN | AD7547KN | AD7548KN | AD7549KN | AD7541KN | AD7542KN | AD7543KN | AD7545AKN | AD7545AN | AD7545BN | AD7545JN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Harris Corporation | Harris Corporation | Harris Corporation |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 | 12 | - | 12 | 12 | 12 | 12 | 12 | - |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 2 | 1 | 2 | - | 1 | 1 | 1 | 1 | 1 | - |
| Settling Time | 2µs | 2µs | 2µs | 2µs | 1.5µs | 1.5µs (Typ) | 1.5µs | - | 2µs | 2µs | 1µs | 2µs | 2µs | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - |
| Differential Output | No | No | No | No | No | No | No | - | Yes | Yes | No | No | No | - |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | - | Parallel | Serial | Parallel | Parallel | Parallel | - |
| Reference Type | External | External | External | External | External | External | External | - | External | External | External | External | External | - |
| Voltage - Supply, Analog | 5V ~ 15V | 4.75V ~ 15.25V | 5V ~ 15V | 5V ~ 15V | 10.8V ~ 16.5V | 5V, 11.4V ~ 15.75V | 15V | - | 5V | 5V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | - |
| Voltage - Supply, Digital | 5V ~ 15V | 4.75V ~ 15.25V | 5V ~ 15V | 5V ~ 15V | 10.8V ~ 16.5V | 5V, 11.4V ~ 15.75V | 15V | - | 5V | 5V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | - |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±1 (Max) | - | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | - | - | - |
| Architecture | R-2R | Multiplying DAC, R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | - | R-2R | R-2R | R-2R | Multiplying DAC, R-2R | Multiplying DAC, R-2R | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | - | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | - |
| Supplier Device Package | 20-PDIP | 20-PLCC (9x9) | 20-PDIP | 20-PDIP | 24-PDIP | 20-PDIP | 20-PDIP | - | 16-PDIP | 16-PDIP | 20-PDIP | 20-PDIP | 20-PDIP | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | - |
