Please send RFQ , we will respond immediately.

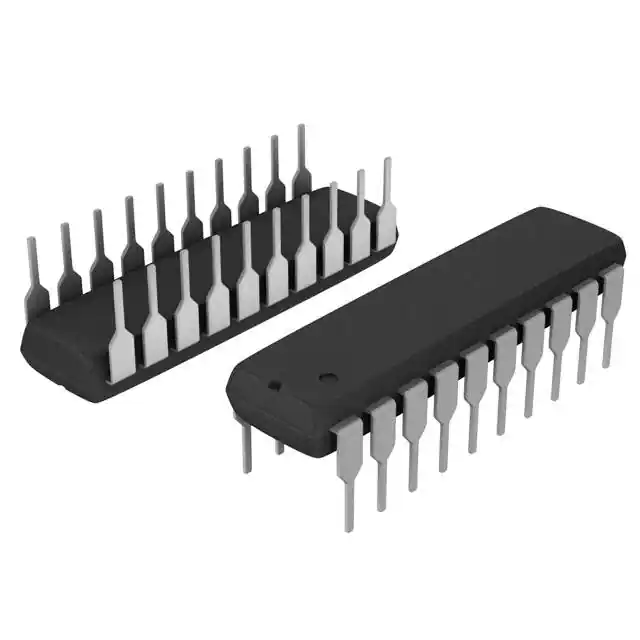

| Part Number | AD7545JNZ | AD7549JNZ | AD7545JPZ | AD7545KNZ | AD7547JNZ | AD7548JNZ | AD7545LNZ | AD7542JNZ | AD7543JNZ | AD7545JN |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Harris Corporation |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | - |
| Number of D/A Converters | 1 | 2 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | - |
| Settling Time | 2µs | 1.5µs | 2µs | 2µs | 1.5µs | 1.5µs (Typ) | 2µs | 2µs | 2µs | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - |
| Differential Output | No | No | No | No | No | No | No | Yes | Yes | - |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Serial | - |
| Reference Type | External | External | External | External | External | External | External | External | External | - |
| Voltage - Supply, Analog | 5V ~ 15V | 15V | 5V ~ 15V | 5V ~ 15V | 10.8V ~ 16.5V | 5V, 11.4V ~ 15.75V | 5V ~ 15V | 5V | 5V | - |
| Voltage - Supply, Digital | 5V ~ 15V | 15V | 5V ~ 15V | 5V ~ 15V | 10.8V ~ 16.5V | 5V, 11.4V ~ 15.75V | 5V ~ 15V | 5V | 5V | - |
| INL/DNL (LSB) | ±2 (Max), ±4 (Max) | ±1 (Max), ±1 (Max) | ±2 (Max), ±4 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±2 (Max) | - |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | - |
| Operating Temperature | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) | 20-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | - |
| Supplier Device Package | 20-PDIP | 20-PDIP | 20-PLCC (9x9) | 20-PDIP | 24-PDIP | 20-PDIP | 20-PDIP | 16-PDIP | 16-PDIP | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | - |
