Please send RFQ , we will respond immediately.

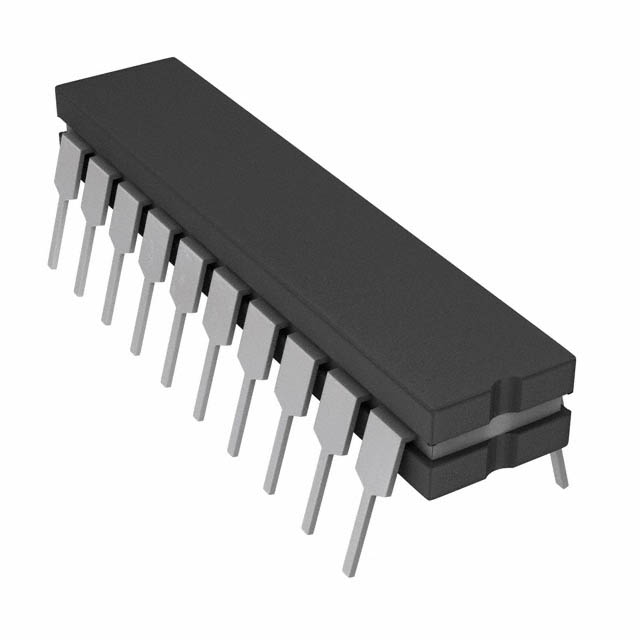

| Part Number | AD7545ACQ | AD7545AQ | AD7545CQ | AD7545GCQ | AD7545ATQ | AD7545ABQ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Obsolete |
| Number of Bits | - | 12 | 12 | 12 | - | - |
| Number of D/A Converters | - | 1 | 1 | 1 | - | - |
| Settling Time | - | 2µs | 2µs | 2µs | - | - |
| Output Type | - | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - | - |
| Differential Output | - | No | No | No | - | - |
| Data Interface | - | Parallel | Parallel | Parallel | - | - |
| Reference Type | - | External | External | External | - | - |
| Voltage - Supply, Analog | - | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | - | - |
| Voltage - Supply, Digital | - | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | - | - |
| INL/DNL (LSB) | - | ±2 (Max), ±4 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | - | - |
| Architecture | - | R-2R | R-2R | R-2R | - | - |
| Operating Temperature | - | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | - | - |
| Package / Case | 20-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CERDIP | 20-CERDIP | 20-CERDIP | 20-CERDIP | 20-CERDIP | 20-CERDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
