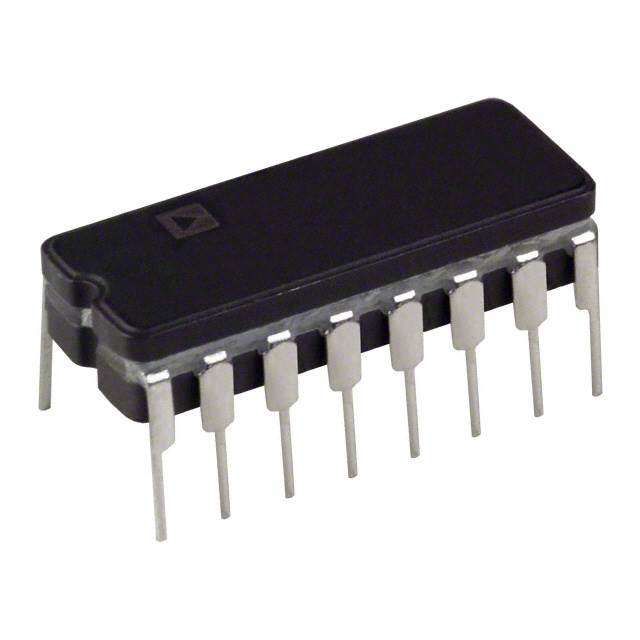

| Part Number | AD7542GBQ | AD7543GBQ | AD7542BQ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 2µs | 2µs | 2µs |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes |
| Data Interface | Parallel | Serial | Parallel |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | 5V | 5V | 5V |
| Voltage - Supply, Digital | 5V | 5V | 5V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | 16-CERDIP | 16-CERDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole |
