Please send RFQ , we will respond immediately.

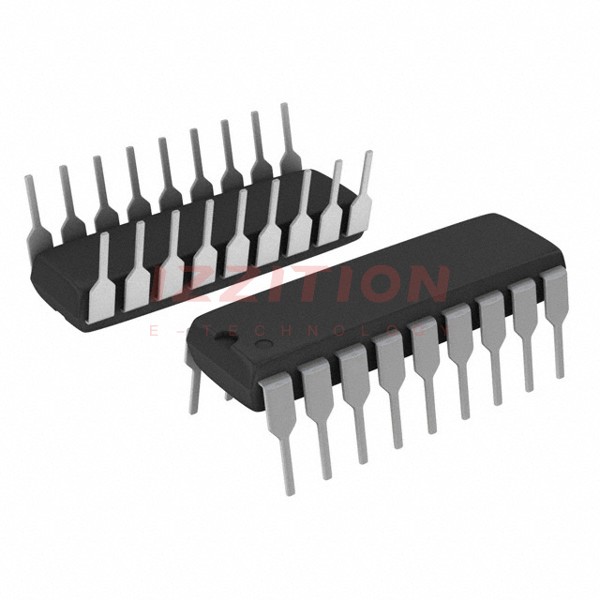

| Part Number | AD7541AKNZ | AD7545AKNZ | AD7541AKRZ | AD7541AKPZ | AD7541AJNZ | AD7541AKN |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete | Active | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | - |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 1 | - |
| Settling Time | 600ns (Typ) | 1µs | 600ns (Typ) | 600ns (Typ) | 600ns (Typ) | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - |
| Differential Output | Yes | No | Yes | Yes | Yes | - |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | - |
| Reference Type | External | External | External | External | External | - |
| Voltage - Supply, Analog | 5V ~ 16V | 5V ~ 15V | 5V ~ 16V | 5V ~ 16V | 5V ~ 16V | - |
| Voltage - Supply, Digital | 5V ~ 16V | 5V ~ 15V | 5V ~ 16V | 5V ~ 16V | 5V ~ 16V | - |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±0.5 (Max) | ±1 (Max), ±1 (Max) | - |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - |
| Package / Case | 18-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 18-SOIC (0.295", 7.50mm Width) | 20-LCC (J-Lead) | 18-DIP (0.300", 7.62mm) | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP | 20-PDIP | 18-SOIC | 20-PLCC (9x9) | 18-PDIP | 18-PDIP |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Surface Mount | Through Hole | Through Hole |
