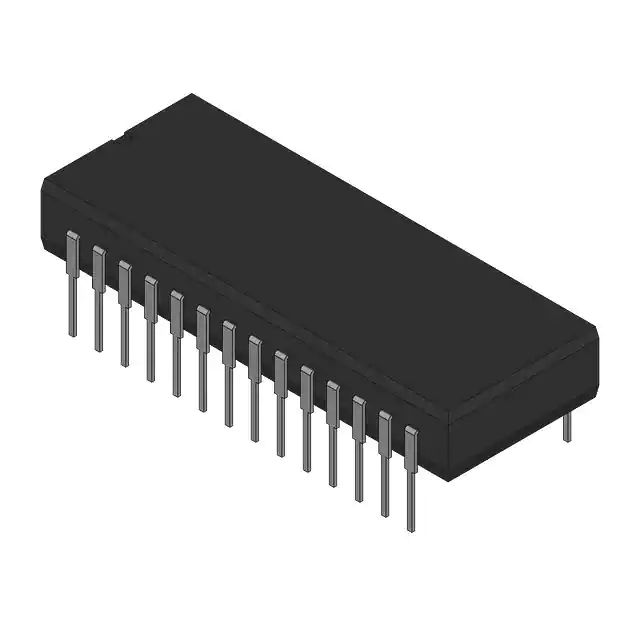

| Part Number | AD7536KN | AD7536KP | AD7537KN | AD7538KN | AD7530KN | AD7533KN | AD7534KN | AD7536JN |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Harris Corporation | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Obsolete | Obsolete | Active |
| Number of Bits | 14 | 14 | - | - | 10 | 10 | 14 | 14 |
| Number of D/A Converters | 1 | 1 | - | - | 1 | 1 | 1 | 1 |
| Settling Time | - | - | - | - | 1µs (Typ) | 800ns | 1.5µs | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | - | - | - | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | - | - | No | Yes | No | No |
| Data Interface | - | - | - | - | Parallel | Parallel | Parallel | - |
| Reference Type | External | External | - | - | - | External | External | External |
| Voltage - Supply, Analog | 11.4V ~ 15.75V | 11.4V ~ 15.75V | - | - | ±5V ~ 15V | 5V ~ 15V | 11.4V ~ 15.75V | 11.4V ~ 15.75V |
| Voltage - Supply, Digital | 11.4V ~ 15.75V | 11.4V ~ 15.75V | - | - | ±5V ~ 15V | 5V ~ 15V | 11.4V ~ 15.75V | 11.4V ~ 15.75V |
| INL/DNL (LSB) | - | - | - | - | - | -, ±1 (Max) | ±1 (Max), ±1 (Max) | - |
| Architecture | R-2R | R-2R | - | - | Multiplying DAC, R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | - | - | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 28-DIP (0.600", 15.24mm) | 28-LCC (J-Lead) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP | 28-PLCC (11.51x11.51) | 24-PDIP | 24-PDIP | 16-PDIP | 16-PDIP | 20-PDIP | 28-PDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
