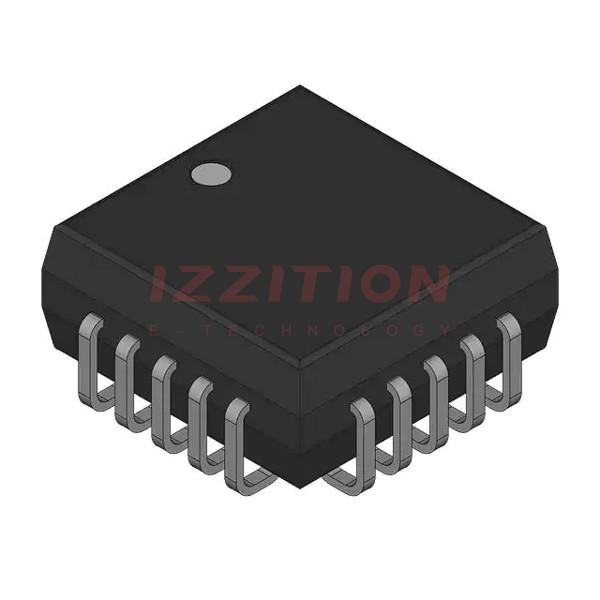

| Part Number | AD7524JPZ | AD7534JPZ | AD7524JRZ | AD7524KPZ | AD7528JPZ | AD7524LPZ | AD7524JNZ | AD7524JP |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Obsolete |
| Number of Bits | 8 | 14 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 1 |
| Settling Time | 250ns | 1.5µs | 500ns | 500ns | 400ns | 500ns | 500ns | 500ns |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Buffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | No | Yes | Yes | No | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External | External | External | External | External |
| Voltage - Supply, Analog | 5V ~ 15V | 11.4V ~ 15.75V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V | 11.4V ~ 15.75V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V |
| INL/DNL (LSB) | ±0.5 (Max) | ±2 (Max), ±1 (Max) | ±0.5 (Max), - | ±0.5 (Max), - | ±1 (Max), ±1 (Max) | ±0.5 (Max), - | ±0.5 (Max), - | ±0.5 (Max), - |
| Architecture | Multiplying DAC, R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 16-SOIC (0.154", 3.90mm Width) | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 16-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) | 20-PLCC (9x9) | 16-SOIC | 20-PLCC (9x9) | 20-PLCC (9x9) | 20-PLCC (9x9) | 16-PDIP | 20-PLCC (9x9) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
