Please send RFQ , we will respond immediately.
| Part Number | AD7511DIJP | AD7511DIKP | AD7511DIJQ | AD7512DIJP | AD7511DIJN |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SPST - NC | SPST - NC | - | SPDT | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | - | 2:1 | 1:1 |
| Number of Circuits | 4 | 4 | - | 1 | 4 |
| On-State Resistance (Max) | 100Ohm | 100Ohm | - | 100Ohm | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm (Typ) | 1Ohm | - | 1Ohm | 1Ohm |
| Voltage - Supply, Single (V+) | ±15V | ±15V | - | - | - |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | - | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 350ns (Typ), 180ns (Typ) | 350ns, 180ns | - | 180ns, 350ns (Typ) | 180ns, 350ns (Typ) |
| -3db Bandwidth | - | - | - | - | - |
| Charge Injection | - | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 1pF | 8pF, 1pF | - | 8pF, 1pF | 8pF, 1pF |
| Current - Leakage (IS(off)) (Max) | 500pA | 5nA | - | - | - |
| Crosstalk | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | 0°C ~ 70°C (TA) | - | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Surface Mount | Through Hole |

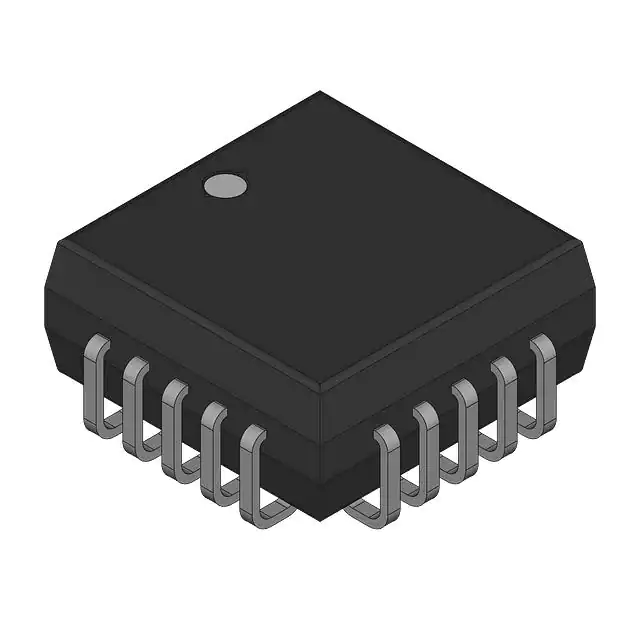

| Package / Case | 16-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) | 16-CDIP (0.300", 7.62mm) | 20-LCC (J-Lead) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP | 20-PLCC (9x9) | 16-CERDIP | 20-PLCC (9x9) | 16-PDIP |
