AD7506SQ/883B
  • Share:

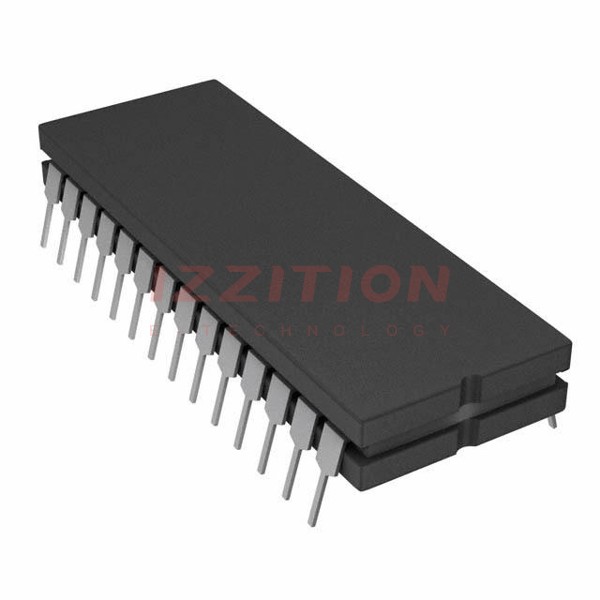

Analog Devices Inc. AD7506SQ/883B

Manufacturer No:
AD7506SQ/883B
Manufacturer:
Analog Devices Inc.
Package:
Tube
Datasheet:
AD7506SQ/883B Datasheet
ECAD Model:
-
Description:
IC MULTIPLEXER 16X1 28CDIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Switch Circuit:-
Multiplexer/Demultiplexer Circuit:16:1
Number of Circuits:1
On-State Resistance (Max):450Ohm
Channel-to-Channel Matching (ΔRon):18Ohm (Typ)
Voltage - Supply, Single (V+):-
Voltage - Supply, Dual (V±):±15V
Switch Time (Ton, Toff) (Max):1.5µs, 1µs
-3db Bandwidth:-
Charge Injection:-
Channel Capacitance (CS(off), CD(off)):5pF, 40pF
Current - Leakage (IS(off)) (Max):-
Crosstalk:-
Operating Temperature:-55°C ~ 125°C
Mounting Type:Through Hole
Package / Case:28-CDIP (0.600", 15.24mm)
Supplier Device Package:28-CDIP
0 Remaining View Similar

In Stock

$165.52
2

Please send RFQ , we will respond immediately.
