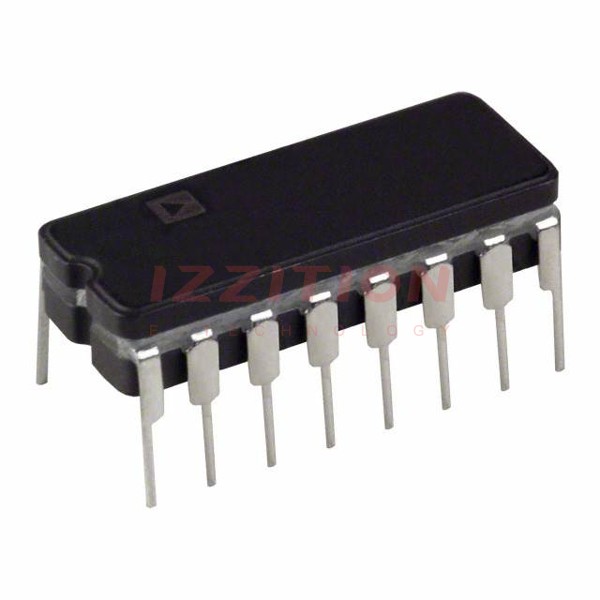

| Part Number | AD7503KQ | AD7507KQ | AD7506KQ | AD7501KQ | AD7503JQ | AD7503KN |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Circuit | - | SP4T | - | - | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 8:1 | 16:1 | - | 8:1 | 8:1 |
| Number of Circuits | 1 | 2 | 1 | - | 1 | 1 |
| On-State Resistance (Max) | 300Ohm | 450Ohm | 450Ohm | - | 300Ohm | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 12Ohm | 18Ohm | 18Ohm | - | 12Ohm | 12Ohm |
| Voltage - Supply, Single (V+) | - | ±15V | - | - | - | - |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | ±15V | - | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 800ns, 800ns (Typ) | 1.5µs, 1µs | 1.5µs, 1µs | - | 800ns, 800ns (Typ) | 800ns, 800ns (Typ) |
| -3db Bandwidth | - | - | - | - | - | - |
| Charge Injection | - | 2pC | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 30pF | 5pF, 20pF | 5pF, 40pF | - | 5pF, 30pF | 5pF, 30pF |
| Current - Leakage (IS(off)) (Max) | 2nA | 5nA | 5nA | - | - | 2nA |
| Crosstalk | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C (TA) | -25°C ~ 85°C | -25°C ~ 85°C (TA) | - | - | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | 28-CDIP | 28-CDIP | 16-CERDIP | 16-CERDIP | 16-PDIP |
