Please send RFQ , we will respond immediately.

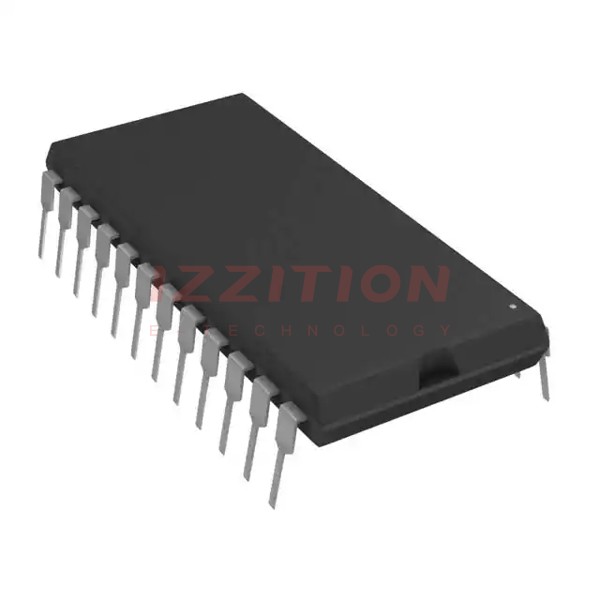

| Part Number | AD75004KNZ | AD75004KPZ | AD75004KN |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete |
| Number of Bits | 12 | 12 | - |
| Number of D/A Converters | 4 | 4 | - |
| Settling Time | 4µs | 4µs | - |
| Output Type | Voltage - Buffered | Voltage - Buffered | - |
| Differential Output | No | No | - |
| Data Interface | Parallel | Parallel | - |
| Reference Type | External, Internal | External, Internal | - |
| Voltage - Supply, Analog | ±10.8V ~ 13.2V | ±10.8V ~ 13.2V | - |
| Voltage - Supply, Digital | - | - | - |
| INL/DNL (LSB) | ±0.5, ±0.5 | ±0.5, ±0.5 | - |
| Architecture | Current Steering | Current Steering | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | - |
| Package / Case | 24-DIP (0.600", 15.24mm) | 28-LCC (J-Lead) | 24-DIP (0.600", 15.24mm) |
| Supplier Device Package | 24-PDIP | 28-PLCC (11.51x11.51) | 24-PDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
