| Part Number | AD744AQ | AD745AQ | AD744SQ | AD744CQ | AD744BQ | AD746AQ | AD744AH |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Amplifier Type | J-FET | J-FET | J-FET | J-FET | J-FET | J-FET | J-FET |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 2 | 1 |
| Output Type | - | - | - | - | - | - | - |
| Slew Rate | 75V/µs | 12V/µs | 75V/µs | 75V/µs | 75V/µs | 75V/µs | 75V/µs |
| Gain Bandwidth Product | - | 20 MHz | 13 MHz | 13 MHz | - | 13 MHz | - |
| -3db Bandwidth | 13 MHz | 20 MHz | 13 MHz | 13 MHz | 13 MHz | 13 MHz | 13 MHz |
| Current - Input Bias | 30 pA | 150 pA | 30 pA | 30 pA | 30 pA | 110 pA | 30 pA |
| Voltage - Input Offset | 300 µV | 250 µV | 300 µV | 250 µV | 250 µV | 300 µV | 300 µV |
| Current - Supply | 3.5mA | 8mA | 3.5mA | 3.5mA | 3.5mA | 7mA | 3.5mA |
| Current - Output / Channel | 25 mA | 40 mA | 25 mA | 25 mA | 25 mA | 25 mA | 25 mA |
| Voltage - Supply Span (Min) | 9 V | 9.6 V | 9 V | 9 V | 9 V | 9 V | 9 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V |
| Operating Temperature | -40°C ~ 85°C | 0°C ~ 70°C | -55°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

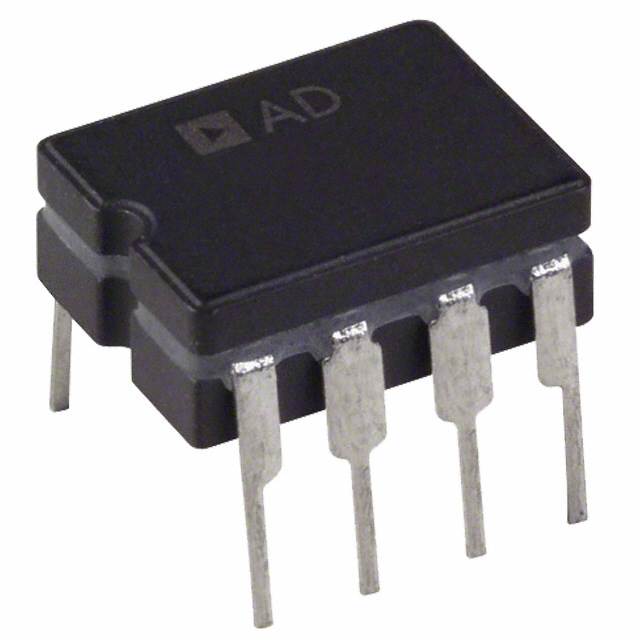

| Package / Case | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | TO-99-8 Metal Can |
| Supplier Device Package | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-CERDIP | TO-99-8 |
