| Part Number | AD744AH | AD744SH | AD744CH | AD744TH | AD744AQ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active | Active | Active |
| Amplifier Type | J-FET | J-FET | J-FET | J-FET | J-FET |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - |
| Slew Rate | 75V/µs | 75V/µs | 75V/µs | 75V/µs | 75V/µs |
| Gain Bandwidth Product | - | 13 MHz | 13 MHz | 13 MHz | - |
| -3db Bandwidth | 13 MHz | 13 MHz | 13 MHz | 13 MHz | 13 MHz |
| Current - Input Bias | 30 pA | 30 pA | 30 pA | 30 pA | 30 pA |
| Voltage - Input Offset | 300 µV | 300 µV | 250 µV | 250 µV | 300 µV |
| Current - Supply | 3.5mA | 3.5mA | 3.5mA | 3.5mA | 3.5mA |
| Current - Output / Channel | 25 mA | 25 mA | 25 mA | 25 mA | 25 mA |
| Voltage - Supply Span (Min) | 9 V | 9 V | 9 V | 9 V | 9 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V | 36 V | 36 V |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

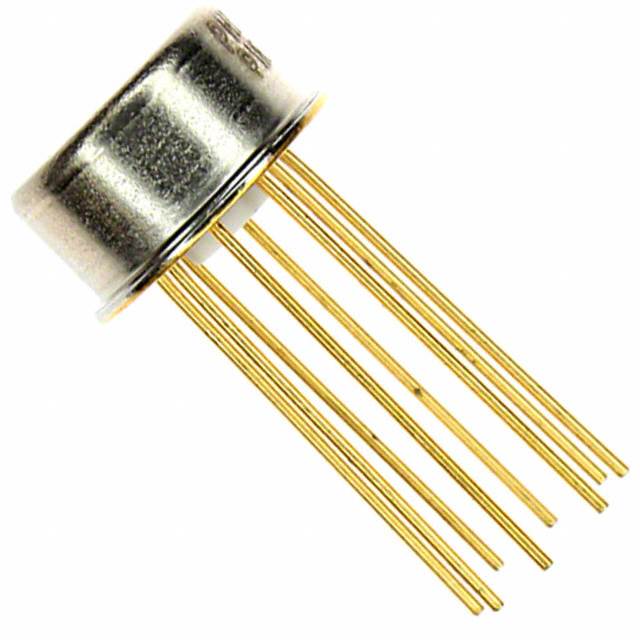

| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | TO-99-8 | TO-99-8 | TO-99-8 | TO-99-8 | 8-CERDIP |
