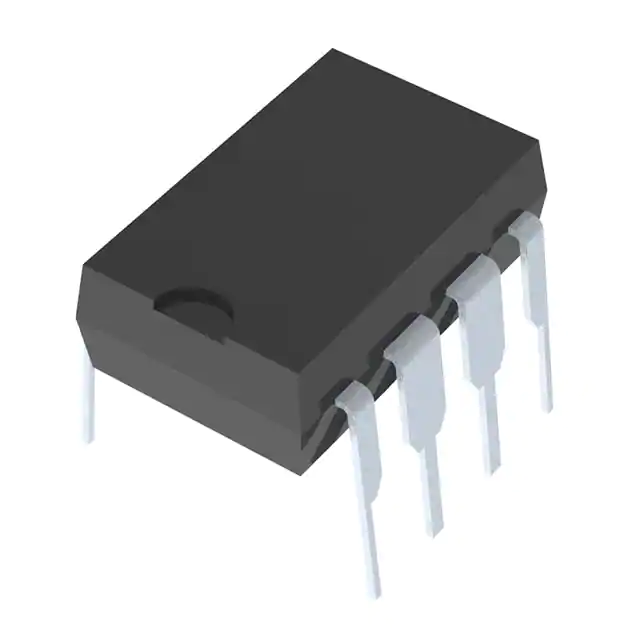

| Part Number | AD7391AN | AD7393AN | AD7396AN | AD7395AN | AD7397AN | AD7394AN | AD7391AR | AD7392AN | AD7391ANZ | AD7390AN |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Bits | 10 | 12 | 12 | 10 | 10 | 12 | 10 | 12 | 10 | 12 |
| Number of D/A Converters | 1 | 1 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 |
| Settling Time | 70µs (Typ) | 70µs (Typ) | 60µs (Typ) | 70µs | 60µs (Typ) | 60µs (Typ) | 70µs (Typ) | 70µs (Typ) | 70µs (Typ) | 70µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No | No | No | No | No |
| Data Interface | SPI | Parallel | Parallel | Serial | Parallel | Serial | SPI | Parallel | SPI | SPI |
| Reference Type | External | External | External | External, Internal | External | External | External | External | External | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±2 (Max), ±0.9 (Max) | ±1.8LSB, ±1 (Max) | ±1.75LSB, ±0.9LSB | ±1.5 (Max), ±1 (Max) | ±1.75LSB, ±1 | ±1.5, ±0.9 | ±2 (Max), ±0.9 (Max) | ±3 (Max), ±1 (Max) | ±2 (Max), ±0.9 (Max) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 8-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 20-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP | 20-DIP | 24-PDIP | 14-PDIP | 24-PDIP | 14-PDIP | 8-SOIC | 20-PDIP | 8-PDIP | 8-PDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
