Please send RFQ , we will respond immediately.

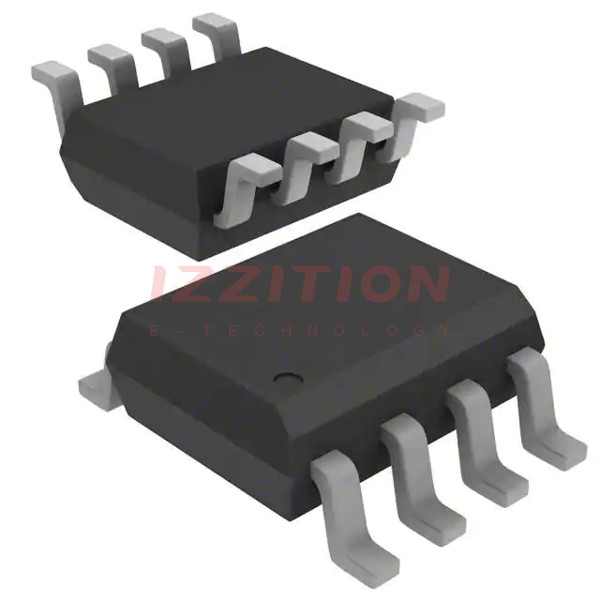

| Part Number | AD7390ARZ | AD7391ARZ | AD7392ARZ | AD7397ARZ | AD7396ARZ | AD7393ARZ | AD7394ARZ | AD7390ANZ | AD7390AR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Obsolete | Active | Obsolete |
| Number of Bits | 12 | 10 | 12 | 10 | 12 | - | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 | 2 | 2 | - | 2 | 1 | 1 |
| Settling Time | 70µs (Typ) | 70µs (Typ) | 70µs (Typ) | 70µs (Typ) | 70µs (Typ) | - | 70µs (Typ) | 70µs (Typ) | 70µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | - | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | - | No | No | No |
| Data Interface | SPI | SPI | Parallel | Parallel | Parallel | - | SPI | SPI | SPI |
| Reference Type | External | External | External | External | External | - | External | External | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | - | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | - | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) | ±2 (Max), ±0.9 (Max) | ±3 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | - | ±2 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | - | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 20-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 14-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | 8-SOIC | 20-SOIC | 24-SOIC | 24-SOIC | 20-SOIC | 14-SOIC | 8-PDIP | 8-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
