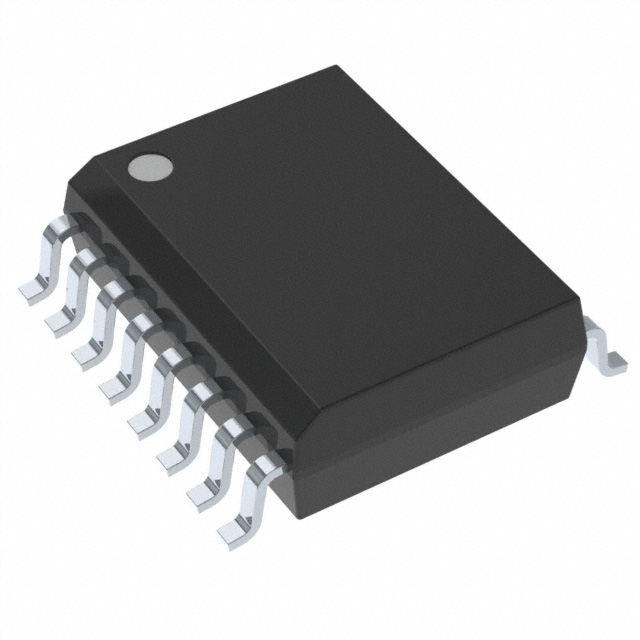

| Part Number | AD7304BRZ | AD7305BRZ | AD7304YRZ | AD7302BRZ | AD7303BRZ | AD7304BR | AD7304BRU | AD7304BRUZ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Obsolete | Active |
| Number of Bits | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of D/A Converters | 4 | 4 | 4 | 2 | 2 | 4 | 4 | 4 |
| Settling Time | 2µs | 2µs | 2µs | 2µs | 2µs | 2µs | 2µs | 2µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No | No | No |
| Data Interface | SPI | Parallel | SPI | Parallel | SPI | SPI | SPI | SPI |
| Reference Type | External | External | External | External | External, Internal | External | External | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V, ±5V | 2.7V ~ 5.5V, ±5V | 2.7V ~ 5.5V, ±5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V, ±5V | 2.7V ~ 5.5V, ±5V | 2.7V ~ 5.5V, ±5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | Current Source | Current Source | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 8-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.295", 7.50mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-SOIC | 20-SOIC | 16-SOIC | 20-SOIC | 8-SOIC | 16-SOIC | 16-TSSOP | 16-TSSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
